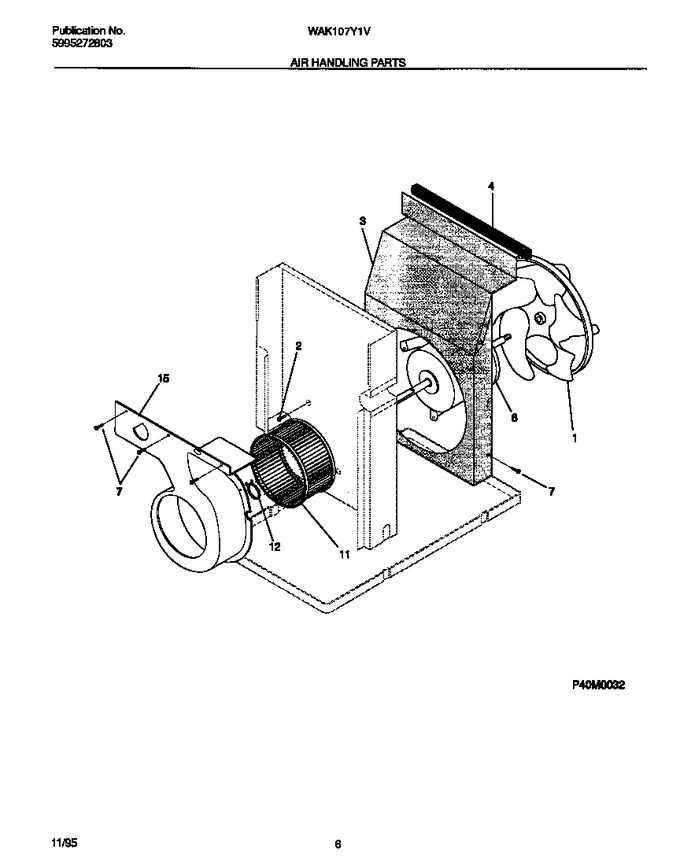

01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309612401 | Fan Blade & Clamp |
|
- | |||||
| 2 | 3202975 | Screw, Phillips, 10-16 X .72, Sq Drive Nib, Truss Head |
|
- | |||||
| 3 | 309606602 | Shroud |
|
- | |||||
| 4 | 5303313964 | Seal-condenser Top |
|
- | |||||
| 7 | 5303303691 | Screw, Phillips, 8-18 X .38, Nib Truss Hd. |
|
- | |||||
| 8 | 309617701 | Motor-fan |
|
- | |||||
| 11 | 309616801 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 14 | 5303015427 | Screw, Phillips, 8-18 X .47, Nib Truss Hd |
|
- | |||||
| 15 | 309606802 | Scroll |
|
- |
