SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts

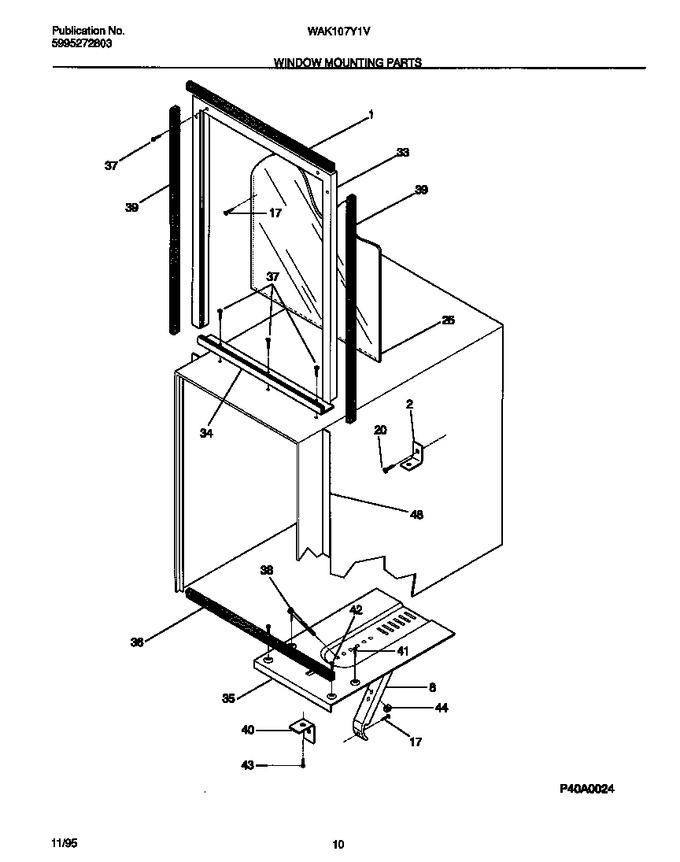

05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08047440		Seal-window		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
8	5303302871		Bracket Support		Appelez-nous	-
17	5308013771		Screw, 8-3/4		Appelez-nous	-
20	5303295750		Screw		Appelez-nous	-
25	5308047516		Panel-window,plastic		Appelez-nous	-
33	5303313971		Frame-expando		Appelez-nous	-
34	5303313965		Retainer-window Panel		Appelez-nous	-
35	5303302872		Plate-mounting		Appelez-nous	-
36	5308047524		Seal-mtg Plate		Appelez-nous	-
37	5308047558		Screw-frame, 8-32 X 3/4		Appelez-nous	-
38	5308047562		Screw-mtg. Plate		Appelez-nous	-
39	5314930813		Seal-side Channels		Appelez-nous	-
40	5303302870		Bracket-safety		Appelez-nous	-
41	5300125233		Screw-mtg Plate 10		Appelez-nous	-
42	5300507212		Screw-mtg Plate 3/4 Slt Ph		Appelez-nous	-
43	5300507693		Screw-bracket 1/2		Appelez-nous	-
44	5300516543		Nut, Hex, 1/4-20, Mtg Plate		Appelez-nous	-
48	309305301		Channel-slide,(2)		Appelez-nous	-
