02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts

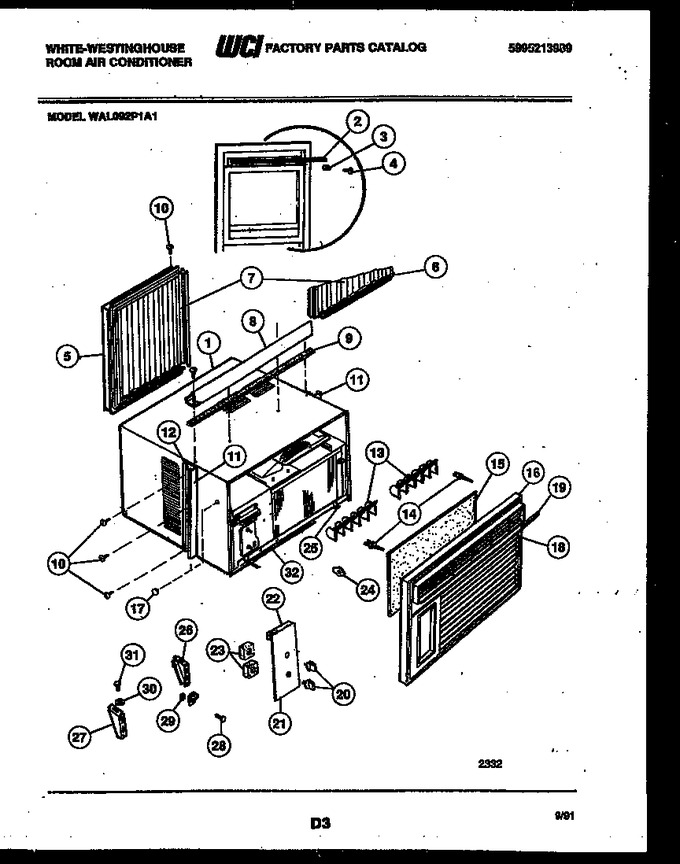

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207184		Wrapper		Appelez-nous	-
2	5308006811		Switch				$ 33.65
2	3002603		Gasket-window		Appelez-nous	-
3	5303211056		Bracket		Appelez-nous	-
4	3002803		Screw		Appelez-nous	-
5	3202964		Frame-lh		Appelez-nous	-
6	3203060		Frame-rh		Appelez-nous	-
7	5303211382		Accordian		Appelez-nous	-
8	3001873		Rail, Top		Appelez-nous	-
9	5303207200		Seal		Appelez-nous	-
10	3015312		Screw		Appelez-nous	-
11	3202966		Retainer		Appelez-nous	-
12	5303276728		Seal,retainer		Appelez-nous	-
13	5303276681		Louver		Appelez-nous	-
14	08013699		Handle-louver		Appelez-nous	-
15	3001809		Filter		Appelez-nous	-
16	5303282414		Front Complete		Appelez-nous	-
17	5303271346		Screw-front (2)		Appelez-nous	-
18	5303282416		Insert Mullion		Appelez-nous	-
19	5308014101		Seal-mullion		Appelez-nous	-
20	5300331902		Knob (2)		Appelez-nous	-
21	5303282417		Dial Plate		Appelez-nous	-
22	5303001984		Seal		Appelez-nous	-
23	5303001775		Spacer		Appelez-nous	-
24	3203495		Clip		Appelez-nous	-
25	5308010914		Clip-front To Base		Appelez-nous	-
26	3016224		Support-rh		Appelez-nous	-
27	3016225		Support-lh		Appelez-nous	-
28	3007756		Screw-support		Appelez-nous	-
29	3007759		Nut (2)		Appelez-nous	-
30	3017023		Nut (4)		Appelez-nous	-
31	5303281649		Screw I(4)		Appelez-nous	-
32	5314949603		Seal Chassis Btm		Appelez-nous	-
14A	08009143		Rubber Washer (2) (non-illustrated)		Appelez-nous	-
1A	5303210207		Grille Rear (non-illustrated)		Appelez-nous	-
1B	5303271448		Nameplate-grille (non-illustrated)		Appelez-nous	-
