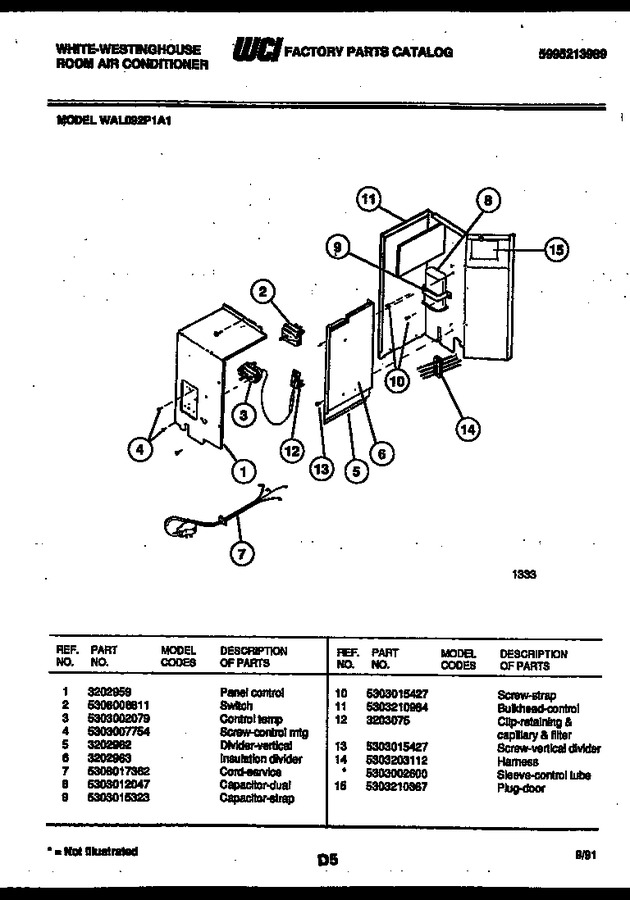

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202959 | Panel-control |
|
- | |||||
| 3 | 5303002079 | Control Temp |
|
- | |||||
| 4 | 5303007754 | Screw-control Mtg. |
|
- | |||||
| 5 | 3202962 | Divider-vertical |
|
- | |||||
| 6 | 3202963 | Insulation-divider |
|
- | |||||
| 7 | 5308017362 | Cord-service |
|
- | |||||
| 8 | 5303012047 | Capacitor-dual |
|
- | |||||
| 9 | 5303015323 | Capacitor (strap) |
|
- | |||||
| 10 | 5303015427 | Screw-strap |
|
- | |||||
| 11 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 12 | 3203075 | Clip - Retaining & Capillary & Filter |
|
- | |||||
| 13 | 5303015427 | Screw - Vertical Divider |
|
- | |||||
| 14 | 5303203112 | Harness |
|
- | |||||
| 15 | 5303210367 | Plug-door |
|
- | |||||
| 14A | 5303002600 | Sleeve-control Tube (non-illustrated) |
|
- |
