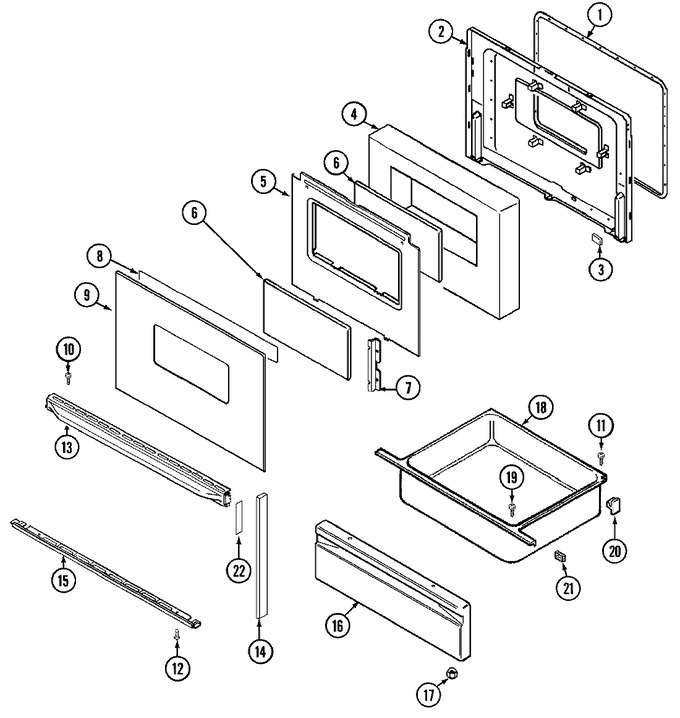

SELECT A DIAGRAM

01 - Body (6892xvb)


02 - Door/drawer (6892xvb)


03 - Internal Controls (6892xvb)


04 - Oven (6892xvb)


05 - Top Assembly (6892xvb)


06 - Wiring Information (6892xvb)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	30		Immediately	$ 77.61
2	74001058		Lining, Door	30	Appelez-nous	-
2	74003244		Lining, Door	32	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	30	Appelez-nous	-
4	74001842		Insulation, Door	30	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
5	74001843		Baffle, Door	30	Appelez-nous	-
6	74001841		Glass, Inner	30	Appelez-nous	-
7	74001844		Retainer, Glass	30	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
8	8270P078-60		Tape, Foil (29 1/2``)	30	Appelez-nous	-
9	74003431		Glass, Door (outer-blk)	34	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	30	Appelez-nous	-
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	30			$ 15.94
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
13	74003429		Handle, Door (blk)	34			$ 93.87
13	7701P144-60		Handle, Door (blk)	30	Appelez-nous	-
14	74002084		End Cap, Door (blk)	30	Appelez-nous	-
14	74003430		End Cap, Door (blk)	34			$ 59.35
15	74003432		Trim, Bottom (blk)	34	Appelez-nous	-
15	7744P105-60		Trim, Bottom (blk)----na	30	Appelez-nous	-
16	2416F038-65		Panel, Drawer (blk)	30	Appelez-nous	-
16	74003701		Panel, Drawer (blk)	33	Appelez-nous	-
16	2404F030-51		Lining, Drawer Panel	33	Appelez-nous	-
17	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	30			$ 4.00
18	3405F018-80		Drawer, Storage	30	Appelez-nous	-
18	71003042		Drawer, Storage	33	Appelez-nous	-
19	7101P037-60		Screw, Stainless	30	Appelez-nous	-
20	74003566		Roller, Drawer	33	Appelez-nous	-
20	8004P026-60		Support, Drawer (rear)	30			$ 9.29
20	WP488130		Nut   (Replaces: 7103P082-60)	33			$ 6.27
21	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	30			$ 11.95
22	8270P093-60		Tape, End Cap	30	Appelez-nous	-
