01 - Body (6892xvb)


02 - Door/drawer (6892xvb)


03 - Internal Controls (6892xvb)


04 - Oven (6892xvb)


05 - Top Assembly (6892xvb)


06 - Wiring Information (6892xvb)

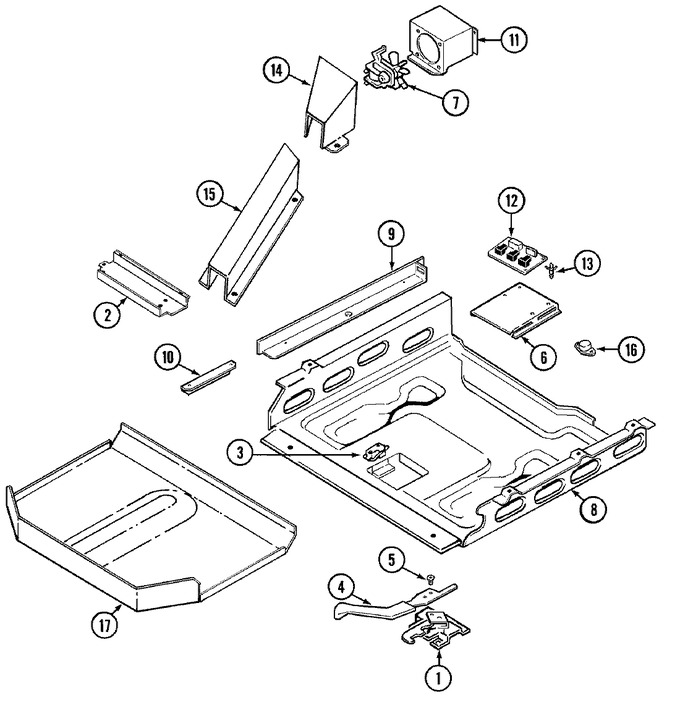

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003032		Latch Assy.	30	Appelez-nous	-
1	W10828565		Screw, Black   (Replaces: 7101P270-60)	30			$ 6.70
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
2	3818F059-51		Channel, Air	30	Appelez-nous	-
3	7101P031-60		Screw	30	Appelez-nous	-
3	74001708		Switch, Door Latch	30	Appelez-nous	-
4	74003005		Lever, Latch (blk)	30	Appelez-nous	-
5	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	30			$ 4.29
6	4005F466-51		Cover, Door Lock	30	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
7	7427P012-60		Fan	30	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
8	74002685		Box, Burner	30	Appelez-nous	-
9	3604F213-51		Shield, Heat (lt)	30	Appelez-nous	-
9	3604F214-51		Shield, Heat (rt)	30	Appelez-nous	-
10	3801F327-51		Bracket	30	Appelez-nous	-
10	W11233072		Screw (no.8ab)   (Replaces: 71001183)	30		Immediately	$ 12.62
11	4001F098-51		Housing, Fan	30	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
12	7428P021-60		Board, Relay	30	Appelez-nous	-
13	8004P020-60		Support, Relay Board	30	Appelez-nous	-
14	3818F056-51		Duct, Air	30	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
15	3818F054-51		Channel, Bottom	30	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
15	3818F053-51		Channel, Air Top	30	Appelez-nous	-
16	7403P307-60		Thermostat, Snap Acting	30	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 12.62
17	74001549		Shield, Wire	30	Appelez-nous	-
