Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5303295752 Door-vent Appelez-nous -
3 5303015298 Cable - Vent Door Appelez-nous -
4 5303202999 Retainer - Actuator Appelez-nous -
5 3202941 Arm-actuator Appelez-nous -
6 3015312 Screw Appelez-nous -
7 5303293521 Panel-control Appelez-nous -
8 5303201621 Switch-selector Appelez-nous -
9 5303301708 Control-temperature Appelez-nous -
10 5303210984 Bulkhead Appelez-nous -
11 5303210243 Divider-vertical Appelez-nous -
12 3203075 Clip-control Bulb Appelez-nous -
13 5303305998 Capacitor, 370 V, 10+45 Mfd Appelez-nous -
14 5303015427 Screw Appelez-nous -
15 5303303077 Strap - Capacitor Appelez-nous -
16 5303202961 Harness Appelez-nous -
17 5303301021 Cord-electric Power Appelez-nous -
18 5303007754 Screw Appelez-nous -
21 3202963 Insulation-divider Appelez-nous -

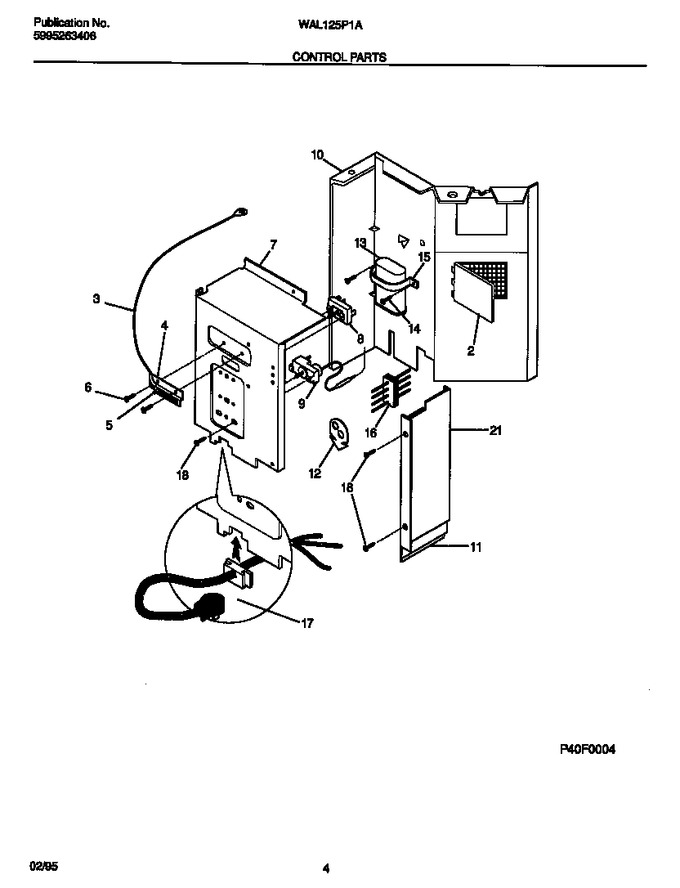

    View Diagram in Separate Window     Print Icon   Print Part List
