02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

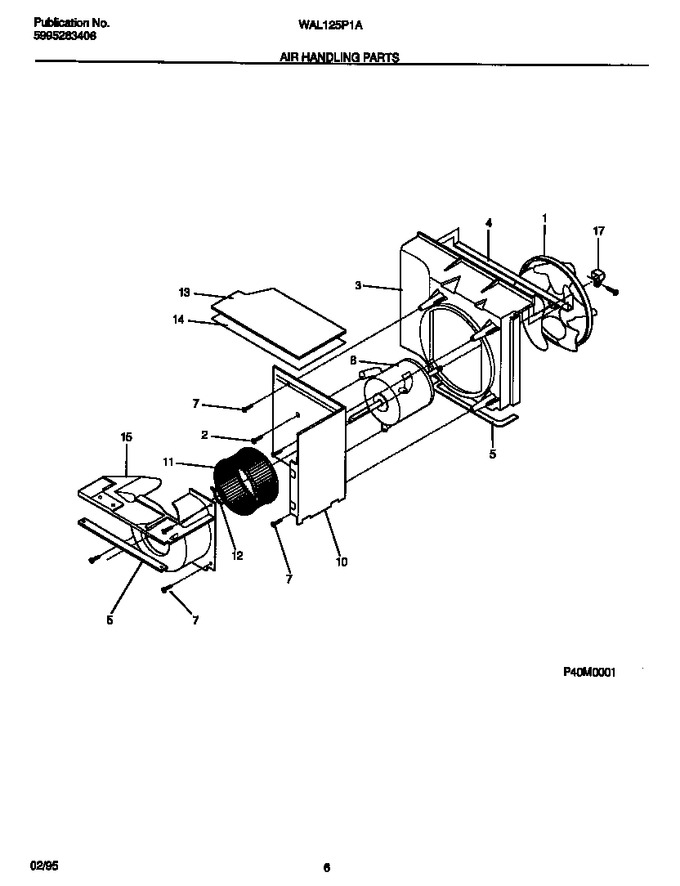

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202954 | Fan Blade & Clamp |
|
- | |||||
| 2 | 3202975 | Screw, (3), Motor |
|
- | |||||
| 3 | 3202950 | Shroud-condenser |
|
- | |||||
| 4 | 3202953 | Seal-shroud Top |
|
- | |||||
| 5 | 3202951 | Seal |
|
- | |||||
| 7 | 5303015427 | Screw |
|
- | |||||
| 8 | 5303202807 | Motor-fan |
|
- | |||||
| 10 | 5303295238 | Bulkhead |
|
- | |||||
| 11 | 5303210236 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 13 | 3202957 | Cover-top |
|
- | |||||
| 14 | 3202958 | Insulation-top Cover |
|
- | |||||
| 15 | 5303300760 | Scroll |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- |
