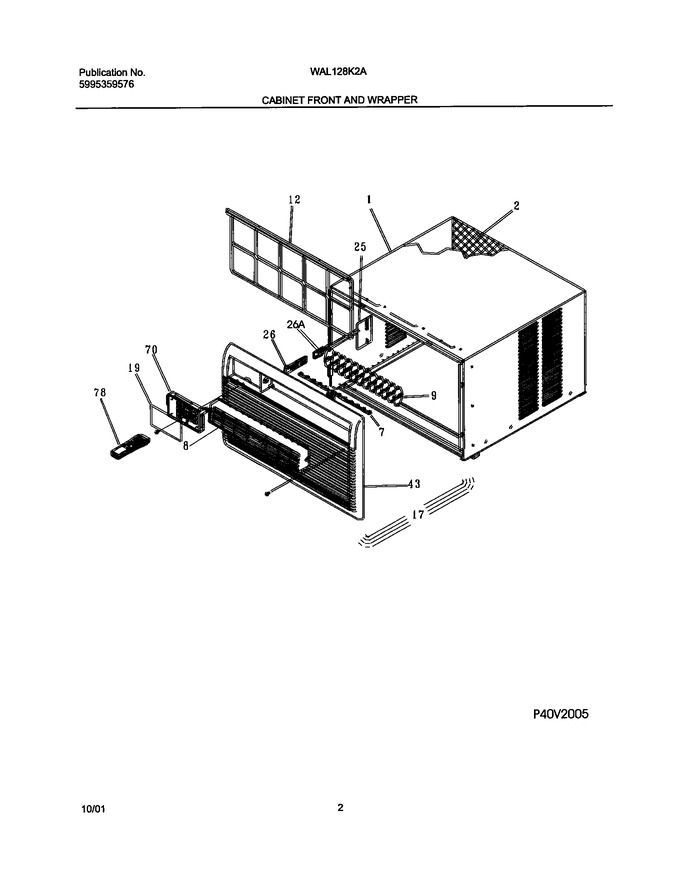

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609210		Cabinet,sleeve ,complete Assy		Appelez-nous	-
2	309632805		Grille,rear ,with Rail		Appelez-nous	-
7	309638601		Link		Appelez-nous	-
8	309639701		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343502		Filter-air,8.32 X 22.40				$ 29.82
19	309340906		Overlay,white Westing ,5 Colors		Appelez-nous	-
25	309328602		Door-vent,fresh Air		Appelez-nous	-
26	309639401		Handle,vent Door		Appelez-nous	-
29	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
43	309640302		Front-panel Complete				$ 137.97
70	309342301		Enclosure,elec Control Mt				$ 18.38
78	309342605		Remote Control Transmitter		Appelez-nous	-
26A	309330201		Detent-vent				$ 26.30
NI	5314949603		Seal-chassis,bottom		Appelez-nous	-
NI	5304415693		Nameplate,rear Grille		Appelez-nous	-
NI	309639601		Panel-front				$ 86.21
NI	309640402		Louver		Appelez-nous	-
