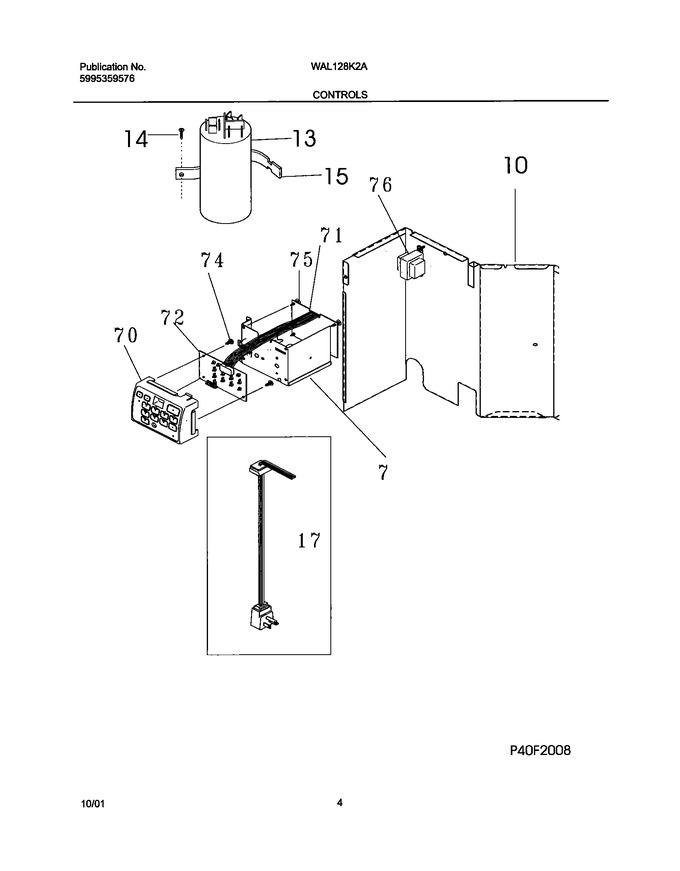

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309605605		Box-control		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343103		Cord-service		Appelez-nous	-
70	309342301		Enclosure,elec Control Mt				$ 18.38
71	309350401		Pc Board,power,sagem		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111602		Transformer,240/12 Volt		Appelez-nous	-
F13	5303316710		Capacitor,370 V ,25+6 Mfd		Appelez-nous	-
NI	5304415017		Protector		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
