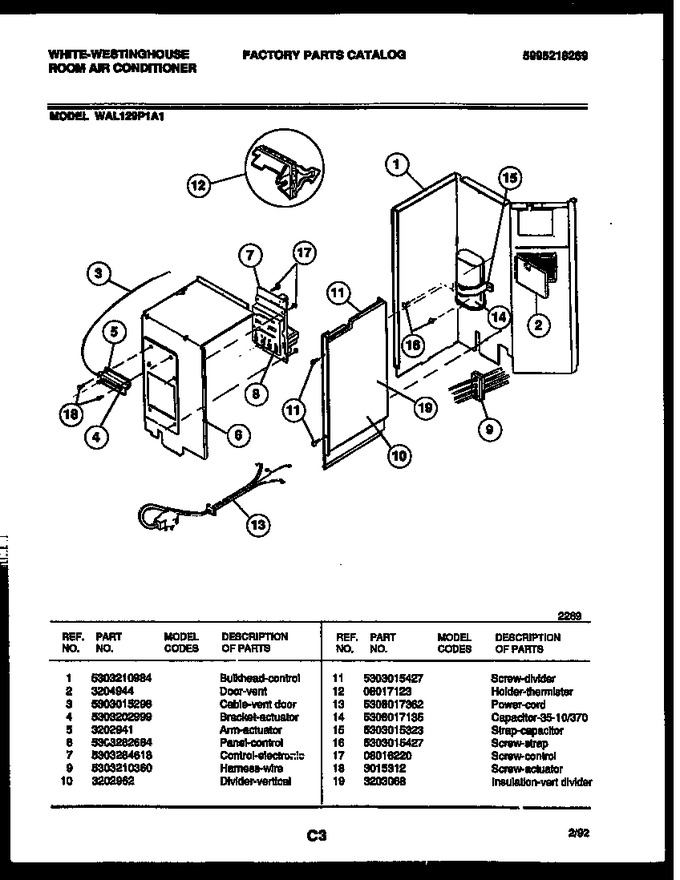

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 2 | 3204944 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 3202941 | Arm-actuator |
|
- | |||||
| 6 | 5303282684 | Panel Control |
|
- | |||||
| 7 | 5303284618 | Control-electronic |
|
- | |||||
| 9 | 5303210360 | Harness-wire |
|
- | |||||
| 10 | 3202962 | Divider-vertical |
|
- | |||||
| 11 | 5303015427 | Screw - Divider |
|
- | |||||
| 12 | 08017123 | Holder-thermister |
|
- | |||||
| 13 | 5308017362 | Power Cord |
|
- | |||||
| 14 | 5308017135 | Capacitor 35-10/370 |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303015427 | Screw-strap |
|
- | |||||
| 17 | 08016220 | Screw - Control |
|
- | |||||
| 18 | 3015312 | Screw-actuator |
|
- | |||||
| 19 | 3203068 | Insulation-vert Divider |
|
- |
