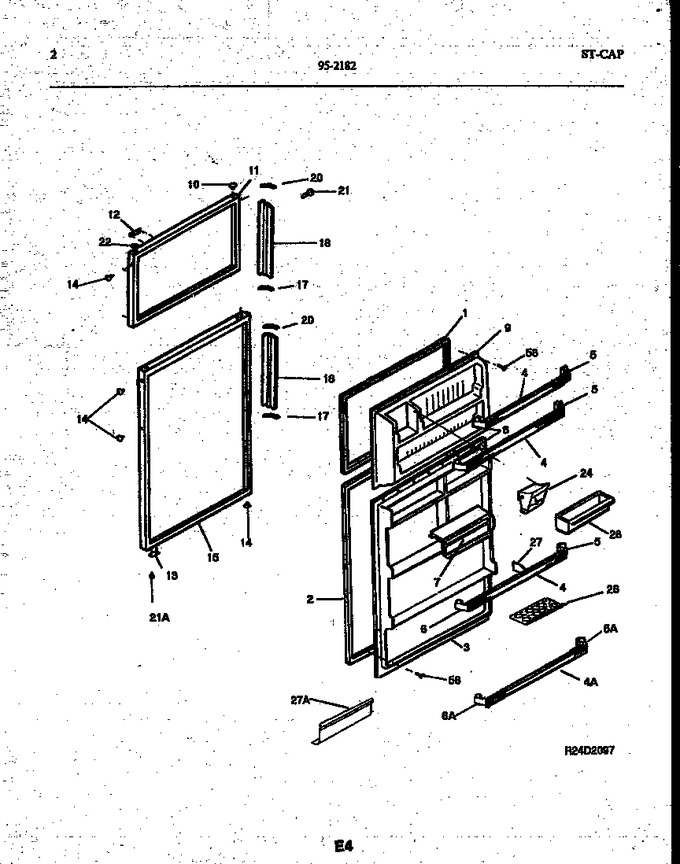

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5318680314 | Gasket-frzr Door, Magnetic, White |
|
$ 113.57 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 215130001 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303285983 | Rack-door, Narrow, (3) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 | |||||
| 7 | 5303285973 | Door-dairy, (2) |
|
- | |||||
| 9 | 3204596 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5300184687 | Panel-frzr Door, White |
|
- | |||||
| 12 | 215134401 | Label-nameplate, White/gray Ltrs |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917145 | Panel-refr Door, White |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 215091901 | Handle-door, White, W/ Trim, End Caps |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 21 | 5308013645 | Screw, Handle Mtg |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 5303286103 | Rack-door, Wide |
|
- | |||||
| 5A | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6A | 3206151 | Support-door Rack, Lh |
|
- |
