SELECT A DIAGRAM

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - System And Automatic Defrost Parts

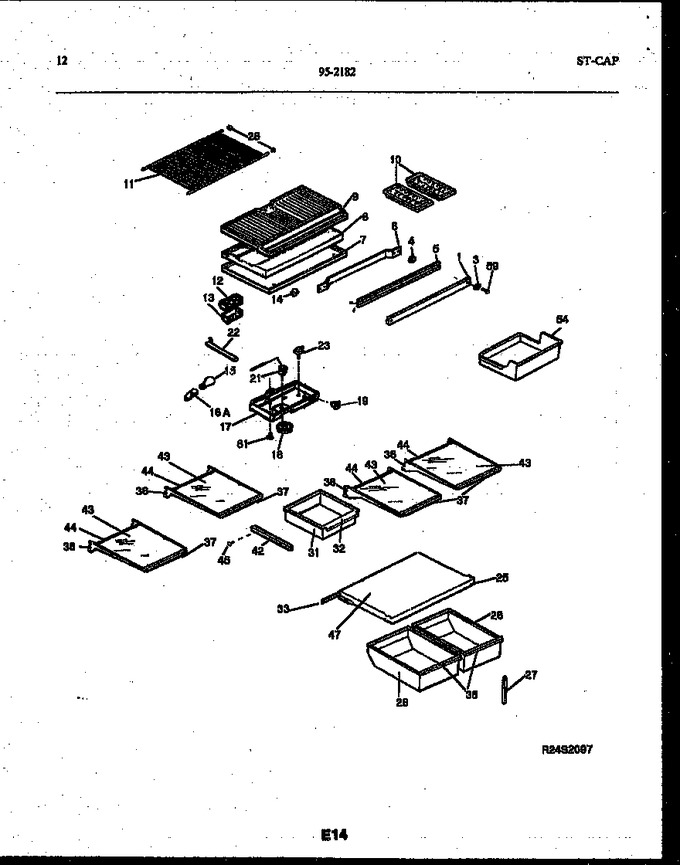

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	5303284459		Pan-crisper, Lh		Appelez-nous	-
26	5303284460		Pan-crisper, Rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
31	5303285979		Pan-meat, Water Clear		Appelez-nous	-
32	5303285992		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket, Crisper Cvr		Appelez-nous	-
35	5303285990		Trim-crisper Pan, Rh		Appelez-nous	-
35	5303285991		Trim-crisper Pan, Lh		Appelez-nous	-
36	215069006		Frame-half Shelf, Cantilever, (3)		Appelez-nous	-
36	215069008		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
37	5303279432		Trim-half Shelf, (3)		Appelez-nous	-
37	5303275678		Trim-meat Kpr Shelf		Appelez-nous	-
42	5303209272		Hanger, Meat Pan/tray, Lh				$ 90.83
43	5303279440		Shelf-glass, Half Shelf, (3)		Appelez-nous	-
43	5303275784		Shelf-glass, Meat Kpr Shelf		Appelez-nous	-
44	5303211828		Trim-meat Kpr Shelf, Rear		Appelez-nous	-
44	5303211830		Trim-half Shelf, Rear, (3)		Appelez-nous	-
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303275650		Insert-crisper Cvr, Glass		Appelez-nous	-
54	5303212918		Container-ice				$ 104.66
59	5308012258		Screw				$ 2.25
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*70394	5300170910		Clip-cantilevr Shlf				$ 2.60
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303209273		Hanger, Meat Pan/tray, Rh (non-illustrated)				$ 60.06
44A	5303211351		Lock-rear Trim (non-illustrated)		Appelez-nous	-
