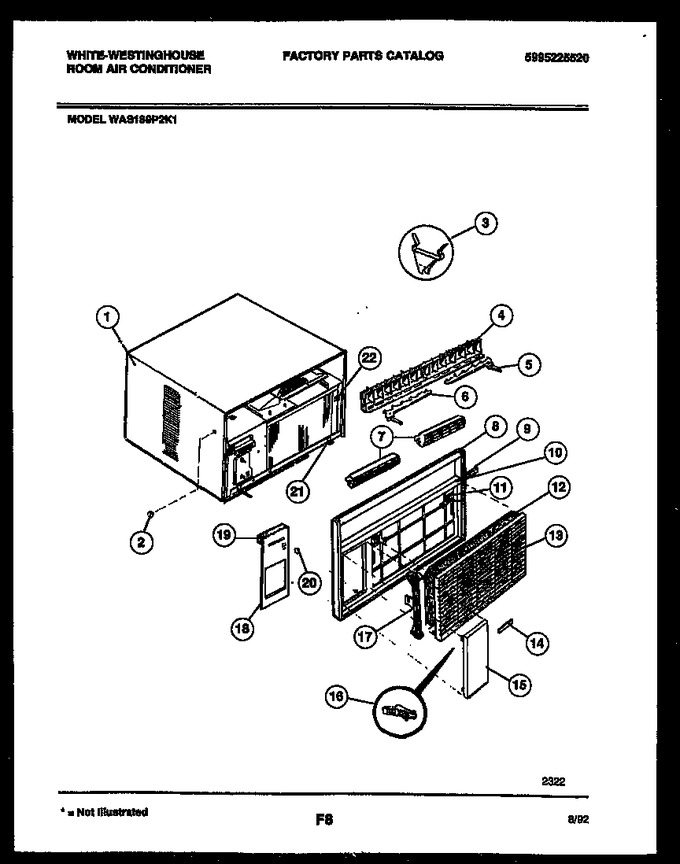

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303271902 | Plug Button |
|
- | |||||
| 3 | 5303001844 | Clip-louver |
|
- | |||||
| 4 | 5303002459 | Louver |
|
- | |||||
| 5 | 5303002162 | Link-rh |
|
- | |||||
| 6 | 5303002163 | Link-lh |
|
- | |||||
| 7 | 5308017160 | Louver |
|
- | |||||
| 8 | 5303016700 | Front-complete |
|
- | |||||
| 9 | 08017131 | Seal-mullion |
|
- | |||||
| 10 | 5300344903 | Trim |
|
- | |||||
| 11 | 5308008175 | Screw-front |
|
- | |||||
| 12 | 5300462101 | Filter |
|
- | |||||
| 13 | 5300454403 | Panel |
|
- | |||||
| 14 | 5300138101 | Nameplate |
|
- | |||||
| 15 | 3202693 | Door |
|
- | |||||
| 16 | 5303017980 | Hinge |
|
- | |||||
| 17 | 5300345801 | Track-filter |
|
- | |||||
| 18 | 5303279466 | Dial Plate |
|
- | |||||
| 19 | 08016089 | Seal |
|
- | |||||
| 20 | 5303002189 | Knob-slide |
|
- | |||||
| 21 | 5308010914 | Clip-front |
|
- | |||||
| 22 | 5303016223 | Bracket-front |
|
- | |||||
| 2A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 2B | 5303271448 | Nameplate-grille (non-illustrated) |
|
- |
