02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

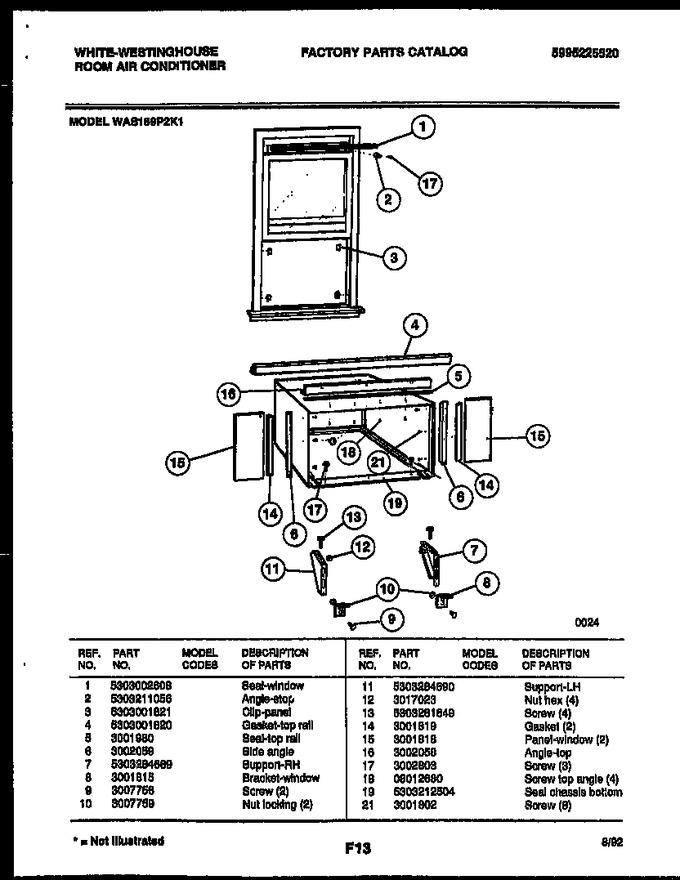

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 3 | 5303001821 | Clip-panel |
|
- | |||||
| 4 | 5303001820 | Gasket-top Rail |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 6 | 3002059 | Side - Angle |
|
- | |||||
| 7 | 5303284689 | Support-rh |
|
- | |||||
| 8 | 3001815 | Bracket - Window |
|
- | |||||
| 9 | 3007756 | Screw (2) |
|
- | |||||
| 10 | 3007759 | Nut-locking (2) |
|
- | |||||
| 11 | 5303284690 | Support-lh |
|
- | |||||
| 12 | 3017023 | Nut-hex (4) |
|
- | |||||
| 13 | 5303281649 | Screw (4) |
|
- | |||||
| 14 | 3001819 | Gasket (2) |
|
- | |||||
| 15 | 3001818 | Panel-window (2) |
|
- | |||||
| 16 | 3002058 | Angle, Top |
|
- | |||||
| 17 | 3002803 | Screw (3) |
|
- | |||||
| 18 | 08012680 | Screw-top Angle (4) |
|
- | |||||
| 19 | 5303212504 | Seal - Chassis, Bottom |
|
- | |||||
| 21 | 3001802 | Screw (8) |
|
- |
