View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front & Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

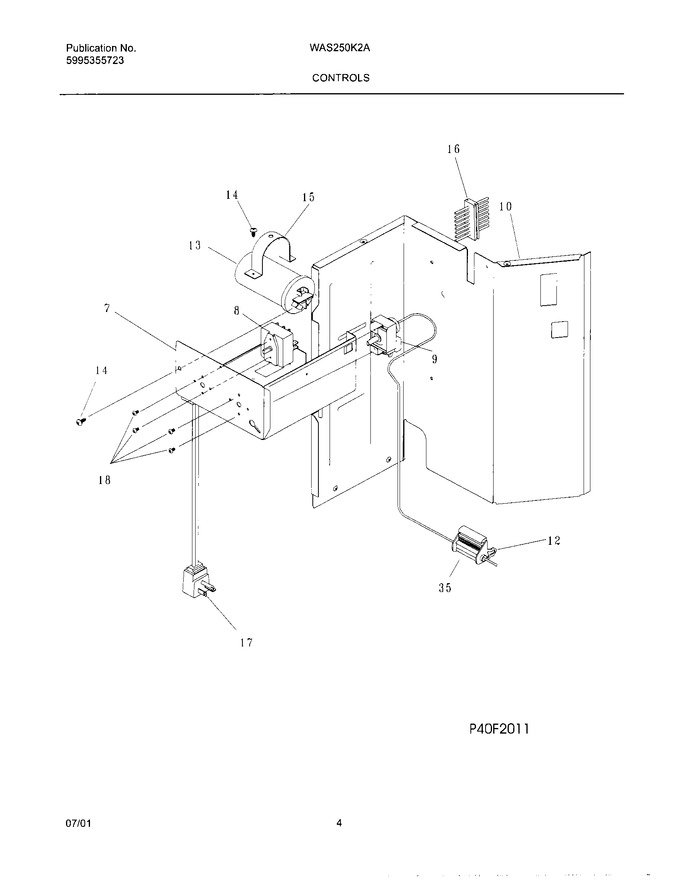

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630401 | Control Box |
|
- | |||||
| 8 | 5304410883 | Switch-selector,7 Position |
|
- | |||||
| 9 | 5304410884 | Control-temperature |
|
- | |||||
| 10 | 309623601 | Bulkhead,control System |
|
- | |||||
| 12 | 309331801 | Clip-control Bulb,(2) |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343114 | Cord-srv Type-d 12awg |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- | |||||
| F13 | 5303316594 | Capacitor,370 V ,7.5x35 Mfd |
|
- | |||||
| F16 | 5304408753 | Harness-wiring |
|
- |
