SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front & Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts

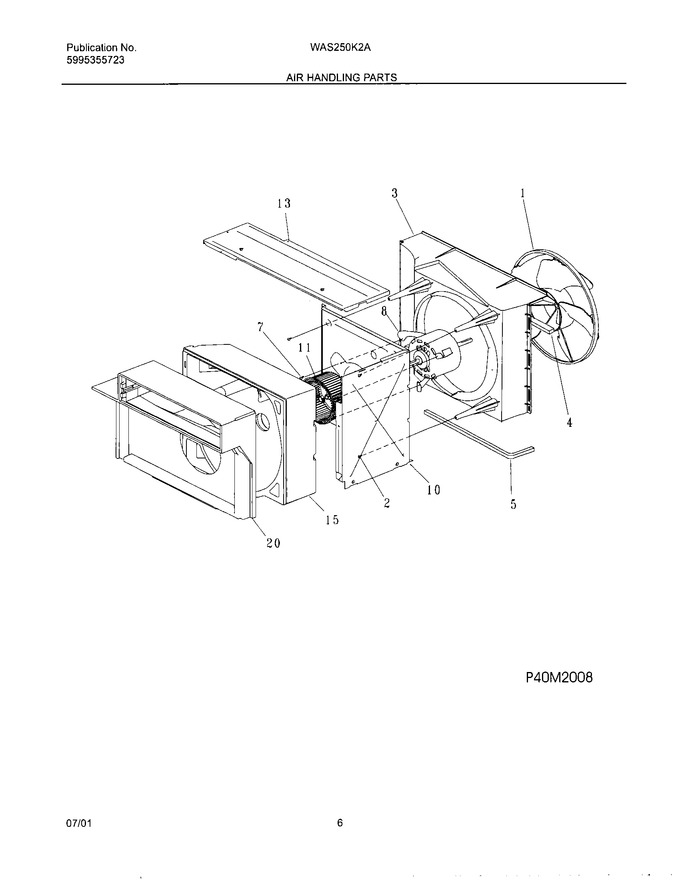

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304422465		Fan Blade Assy,tecolon		Appelez-nous	-
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309623201		Shroud-condenser,one Piece				$ 99.33
4	5303212504		Seal-sleeve/chassis,bottom		Appelez-nous	-
5	5303015311		Seal,fan Housing ,lower		Appelez-nous	-
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
10	309623401		Bulkhead,air System		Appelez-nous	-
11	309633001		Blower Wheel,plastic ,with Clamp		Appelez-nous	-
13	309630302		Cover-top		Appelez-nous	-
15	309630101		Housing-blower,evap Scroll		Appelez-nous	-
20	309630201		Plate-blower Housing,scroll Plate		Appelez-nous	-
8#	309630604		Motor-fan,ysk 250b-6				$ 526.16

    View Diagram in Separate Window       Print Part List
