02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

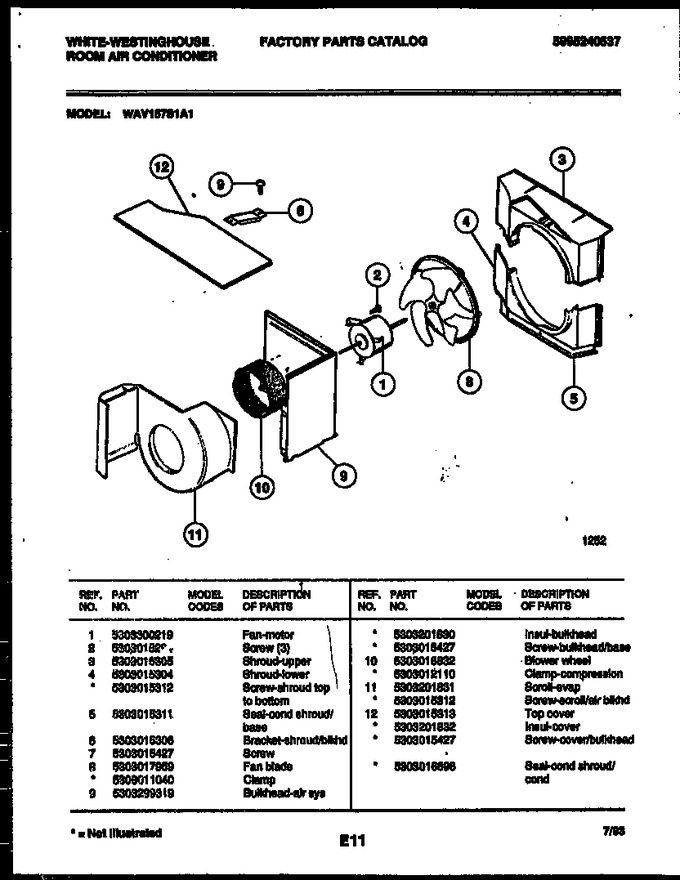

| 1 | 5303300219 | Fan-motor |
|
- | |||||
| 2 | 5303015294 | Screw (3) |
|
- | |||||
| 3 | 5303015305 | Shroud - Upper |
|
- | |||||
| 4 | 5303015304 | Shroud - Lower |
|
- | |||||
| 5 | 5303015311 | Seal-cond Shroud/base |
|
- | |||||
| 6 | 5303015306 | Bracket-shroud/blkhd |
|
- | |||||
| 7 | 5303015427 | Screw |
|
- | |||||
| 8 | 5303017959 | Fan Blade |
|
- | |||||
| 9 | 5303299319 | Bulkhead-air Sys |
|
- | |||||
| 10 | 5303016832 | Blower Wheel |
|
- | |||||
| 11 | 5303201831 | Scroll-evap |
|
- | |||||
| 12 | 5303015313 | Top Cover |
|
- | |||||
| *77361 | 5303015427 | Screw-cover/bulkhead |
|
- | |||||
| *77361 | 5303201832 | Insul-cover |
|
- | |||||
| *77361 | 5303016696 | Seal-cond Shroud/cond |
|
- | |||||
| 10A | 5303012110 | Clamp-compression (non-illustrated) |
|
$ 8.14 | |||||
| 11A | 5303015312 | Screw-scroll/air Blkhd (non-illustrated) |
|
- | |||||
| 4A | 5303015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 8A | 5308011040 | Clamp (non-illustrated) |
|
- | |||||
| 9A | 5303201830 | Insul-bulkhead (non-illustrated) |
|
- | |||||
| 9B | 5303015427 | Screw-bulkhead/base (non-illustrated) |
|
- |
