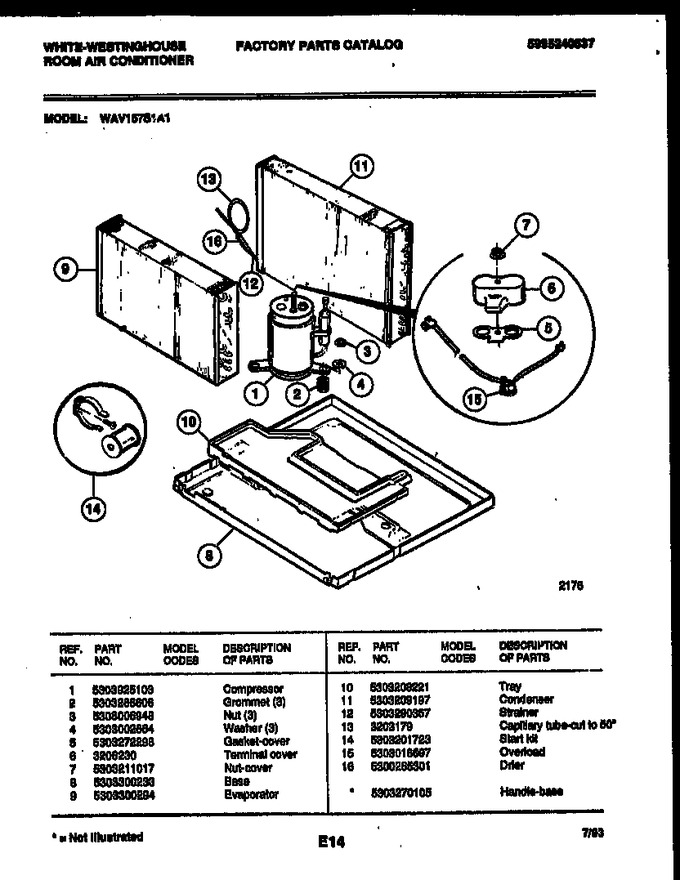

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925103 | Compressor |
|
- | |||||
| 2 | 5303286606 | Grommet (3) |
|
- | |||||
| 3 | 5308006948 | Nut (3) |
|
- | |||||
| 4 | 5303002664 | Washer (3) |
|
- | |||||
| 5 | 5303272298 | Gasket-cover |
|
- | |||||
| 6 | 3206230 | Terminal Cover |
|
- | |||||
| 7 | 5303211017 | Nut-cover |
|
- | |||||
| 8 | 5303300233 | Base |
|
- | |||||
| 9 | 5303300294 | Evaporator |
|
- | |||||
| 10 | 5303208221 | Tray |
|
- | |||||
| 11 | 5303209197 | Condenser |
|
- | |||||
| 12 | 5303290357 | Strainer |
|
- | |||||
| 13 | 3203179 | Capillary Tube, Cut To 50`` |
|
- | |||||
| 14 | 5303201723 | Start Kit |
|
- | |||||
| 15 | 5303016697 | Overload |
|
- | |||||
| 16 | 5300265301 | Drier |
|
$ 284.30 | |||||
| *77367 | 5303270105 | Handle-base |
|
- |
