02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

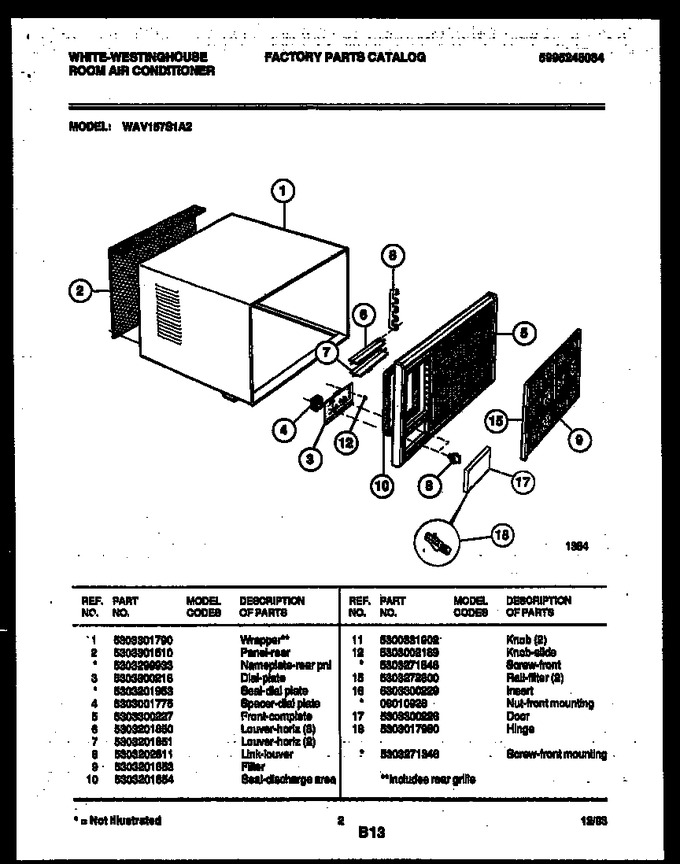

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301790 | Wrapper (includes Rear Grille) |
|
- | |||||
| 2 | 5303301510 | Panel-rear |
|
- | |||||
| 3 | 5303300216 | Dial-plate |
|
- | |||||
| 4 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 5 | 5303300227 | Front-complete |
|
- | |||||
| 6 | 5303201850 | Louver-horiz (8) |
|
- | |||||
| 7 | 5303201851 | Louver-horiz (2) |
|
- | |||||
| 8 | 5303202811 | Link-louver |
|
- | |||||
| 9 | 5303201853 | Filter |
|
- | |||||
| 10 | 5303201854 | Seal-discharge Area |
|
- | |||||
| 11 | 5300331902 | Knob (2) |
|
- | |||||
| 12 | 5303002189 | Knob-slide |
|
- | |||||
| 15 | 5303272800 | Rail-filter (2) |
|
- | |||||
| 16 | 5303300229 | Insert |
|
- | |||||
| 17 | 5303300228 | Door |
|
- | |||||
| 18 | 5303017980 | Hinge |
|
- | |||||
| *84444 | 5303271346 | Screw-front Mounting |
|
- | |||||
| 12A | 5303271546 | Screw-front (non-illustrated) |
|
- | |||||
| 16A | 08010928 | Nut-front Mounting (non-illustrated) |
|
- | |||||
| 2A | 5303299933 | Nameplate-rear Pnl (non-illustrated) |
|
- | |||||
| 3A | 5303201953 | Seal-dial Plate (non-illustrated) |
|
- |
