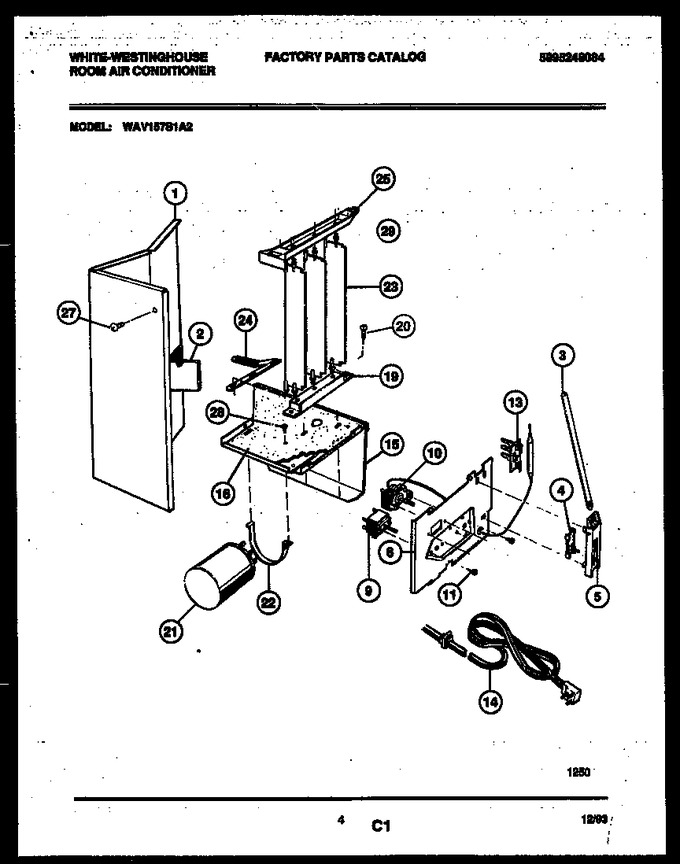

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296868 | Bulkhead-control Area |
|
- | |||||
| 2 | 5303295752 | Vent Door |
|
- | |||||
| 3 | 5303201820 | Strap,vent Door |
|
- | |||||
| 4 | 5303201821 | Actuator-vent Door |
|
- | |||||
| 5 | 5303209200 | Retainer-actuator |
|
- | |||||
| 6 | 5303300231 | Control Panel |
|
- | |||||
| 9 | 5303201836 | Switch |
|
- | |||||
| 10 | 5303201838 | Control-temperature |
|
- | |||||
| 11 | 5303007754 | Screw (4) |
|
- | |||||
| 13 | 5303211009 | Spacer-cont Bulb |
|
- | |||||
| 14 | 5303301021 | Cord-service |
|
- | |||||
| 15 | 5303300232 | Cover-control Compartment |
|
- | |||||
| 16 | 5303201842 | Insulation-cover |
|
- | |||||
| 19 | 5303201843 | Retainer-louver |
|
- | |||||
| 20 | 5303015312 | Screw-retainer/bottom |
|
- | |||||
| 21 | 5303201951 | Capacitor 10-40/370 |
|
- | |||||
| 22 | 3201845 | Strap-capacitor |
|
- | |||||
| 23 | 5303299318 | Louver-vertical (2) |
|
- | |||||
| 24 | 5300517130 | Link-louver |
|
- | |||||
| 25 | 5303201847 | Retainer-louver |
|
- | |||||
| 27 | 5303015427 | Screw-retainer/blkhd |
|
- | |||||
| 28 | 5303016106 | Screw-strap |
|
- | |||||
| 29 | 3202810 | Spacer-louver (5) |
|
- | |||||
| *84448 | 5303015427 | Screw-cover/blkhd |
|
- | |||||
| *84448 | 5303017345 | Harness |
|
- | |||||
| 1A | 5303201826 | Insul-w/ Vent Door |
|
- | |||||
| 23A | 5303300230 | Louver With Handle (non-illustrated) |
|
- |
