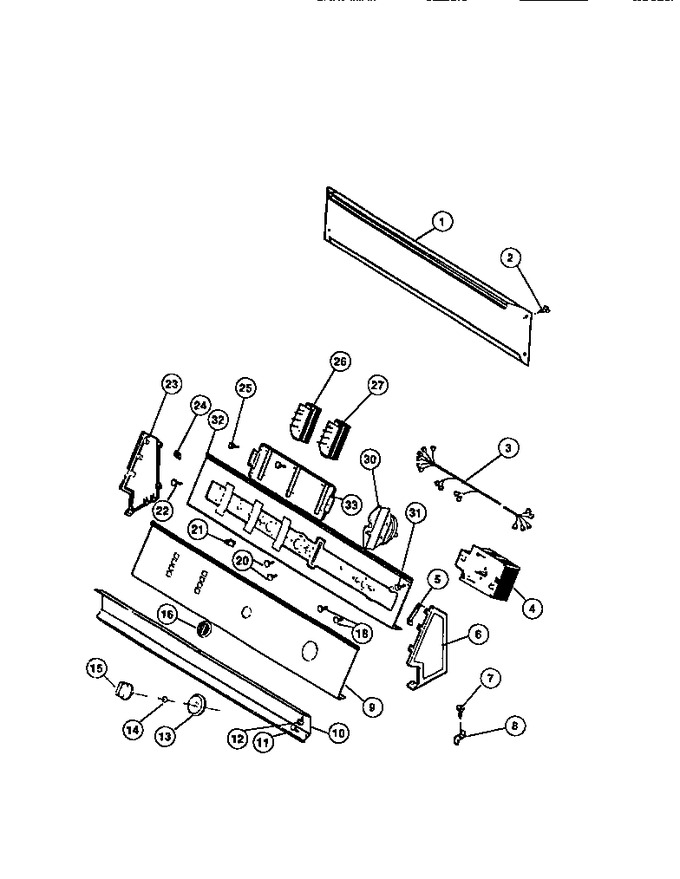

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08010781		Panel-rear		Appelez-nous	-
2	08010782		Screws		Appelez-nous	-
3	3200269		Harness-wiring		Appelez-nous	-
4	3015655		Timer		Appelez-nous	-
5	08014349		Strap-ground		Appelez-nous	-
6	08010787		End-cap Rh		Appelez-nous	-
7	08001689		Screw		Appelez-nous	-
8	08016754		Wire-ground (non-illustrated)		Appelez-nous	-
8	08002341		Terminal		Appelez-nous	-
9	3200783		Escutcheon		Appelez-nous	-
10	08014343		Trim-lower		Appelez-nous	-
11	08011318		Screws (2)		Appelez-nous	-
12	08010782		Screws (3)		Appelez-nous	-
13	08015498		Indicator-timer Dial		Appelez-nous	-
14	08015493		Spacer-timer		Appelez-nous	-
15	08014337		Knob-timer		Appelez-nous	-
16	08014340		Knob-water Level Switch		Appelez-nous	-
18	08006636		Screws (2)		Appelez-nous	-
20	08002339		Screws (2)		Appelez-nous	-
21	08010807		Buttons-push		Appelez-nous	-
22	08004660		Screws (2)		Appelez-nous	-
23	08010783		End-cap Lh		Appelez-nous	-
24	08014350		Nuts (8)		Appelez-nous	-
25	08010804		Screws (4)		Appelez-nous	-
26	08015908		Switch-temperature Selector		Appelez-nous	-
27	08015908		Switch-speed		Appelez-nous	-
30	08015878		Switch-water Level		Appelez-nous	-
31	08010789		Screws (2)		Appelez-nous	-
32	08015867		Bracket-control Mounting		Appelez-nous	-
33	08015866		Bracket-switch Support		Appelez-nous	-
