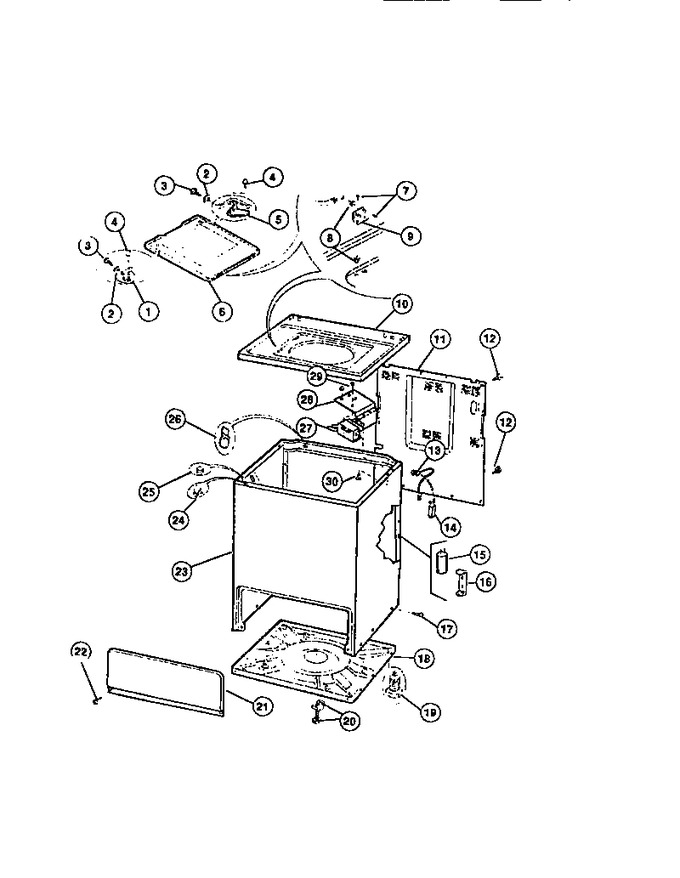

03 - Cabinet, Base, Top, Lid


04 - Outer Tub, Inner Spin Basket, Subto


05 - Pump, Hoses, Water Valve


06 - Motor, Pulleys, Belt, Springs


07 - Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08015519		Bracket-lid		Appelez-nous	-
2	08002408		Washer		Appelez-nous	-
3	08002407		Screw (3)		Appelez-nous	-
4	08015520		Bumpers (4)		Appelez-nous	-
5	03018962		Strike		Appelez-nous	-
6	08950204		Lid-wheat		Appelez-nous	-
7	08027483		Screw (8)		Appelez-nous	-
8	08010830		Grommet (8)		Appelez-nous	-
9	08002412		Hinge (2)		Appelez-nous	-
10	3018968		Panel Top (wheat)		Appelez-nous	-
11	08011286		Panel-rear		Appelez-nous	-
12	08001559		Screws		Appelez-nous	-
13	08004647		Bushing-cord		Appelez-nous	-
14	08027683		Cord-service		Appelez-nous	-
15	08014903		Capacitor		Appelez-nous	-
16	08014902		Bracket		Appelez-nous	-
17	08001613		Screw (6)		Appelez-nous	-
18	08011290		Base-cabinet		Appelez-nous	-
19	08950022		Foot-leveling		Appelez-nous	-
20	08004066		Block - Shipping		Appelez-nous	-
20	08027522		Screw-shipping		Appelez-nous	-
21	08011262		Panel Access (wheat)		Appelez-nous	-
22	08001578		Screw (2)		Appelez-nous	-
23	08015513		Cabinet (wheat)		Appelez-nous	-
24	08001597		Clip (2)		Appelez-nous	-
25	08001596		Bumper (4)		Appelez-nous	-
26	08002384		Hinge (2)		Appelez-nous	-
26	08011276		Screw (2) (non-illustrated)		Appelez-nous	-
27	3017110		Lock-lid		Appelez-nous	-
28	3018953		Bracket		Appelez-nous	-
29	3018964		Screw (2)		Appelez-nous	-
30	08002420		Rivets (2)		Appelez-nous	-
*17480	08011304		Clip-pressure Tube-short		Appelez-nous	-
*17481	08011305		Clip-pressure Tube-long		Appelez-nous	-
*17482	08001667		Paint-6 Oz. Spray-wheat		Appelez-nous	-
