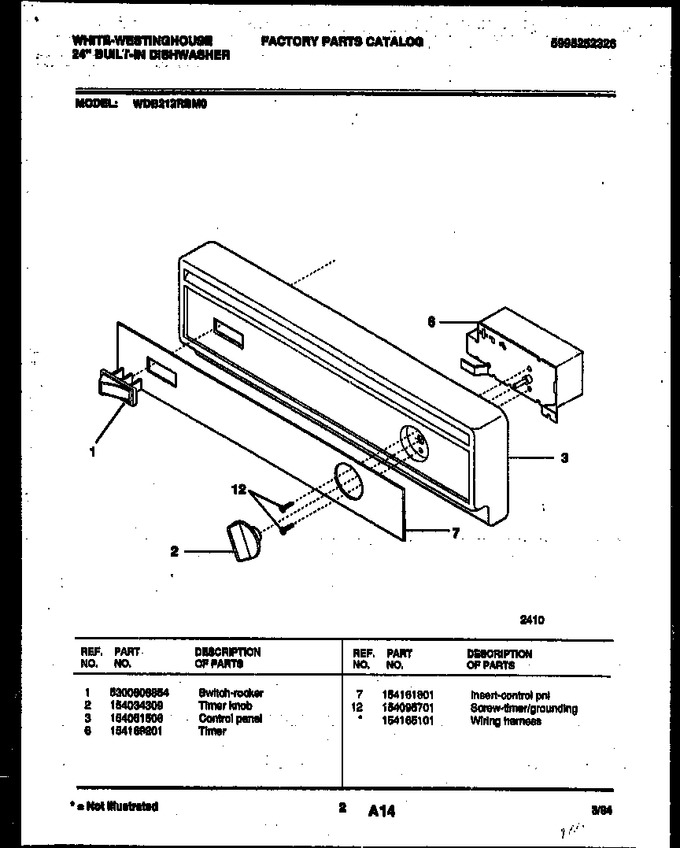

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808854 | Switch - Rocker |
|
- | |||||
| 2 | 154034309 | Timer Knob |
|
$ 77.81 | |||||
| 3 | 154051506 | Control Panel |
|
- | |||||
| 6 | 154169201 | Timer |
|
$ 277.78 | |||||
| 7 | 154161801 | Insert-control Pnl |
|
- | |||||
| 12 | 154095701 | Screw-timer/grounding |
|
$ 10.34 | |||||
| *93100 | 154165101 | Wiring Harness |
|
- |
