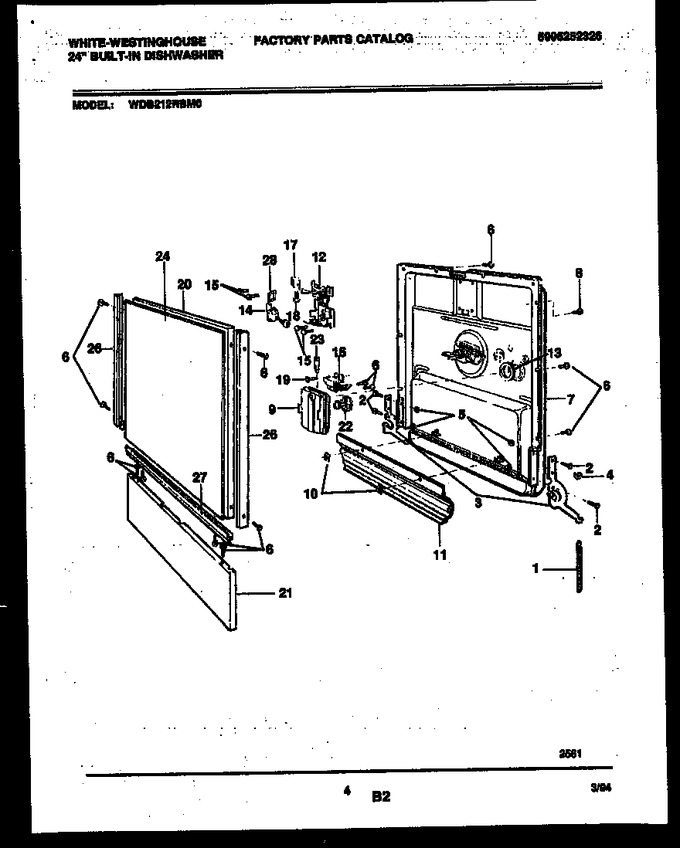

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809703		Door Spring				$ 39.04
2	154093301		Screw-10-24 X 58``			Immediately	$ 2.12
3	5303270031		Arm Assembly (2)				$ 79.75
4	5300805884		Spring Pad (2)		Appelez-nous	-
5	154079601		Nut (4)				$ 0.41
6	5300809696		Screw-8-18		Appelez-nous	-
7	154196902		Door Assy				$ 228.01
8	5300808749		Screw-8 X 5/8``(6)		Appelez-nous	-
9	5300806753		Body-dispenser				$ 69.93
10	154026601		Speednut				$ 25.67
11	5300809773		Baffle Seal		Appelez-nous	-
12	154132502		Latch Assy		Appelez-nous	-
13	5300805631		Grommet-rinse Agent				$ 6.29
14	154105301		Switch				$ 21.63
15	218781101		Screw-8a X 5/8`` (4)   (Replaces: 154026501)				$ 15.60
16	5300809782		Bi-metal Rinse Dispenser				$ 47.51
17	5300808712		Latch Knob				$ 31.71
18	5300808715		Screw, 8, 32 X 5/16``		Appelez-nous	-
19	5300807501		Screw-8a X 1/2``		Appelez-nous	-
20	5303299935		Door Panel		Appelez-nous	-
21	5300809162		Access Panel-black		Appelez-nous	-
22	5303943094		Fill-plug		Appelez-nous	-
23	5300809898		Plunger				$ 36.49
24	5300808908		Insert-door Panel-almond/black		Appelez-nous	-
24	5303943093		Insert-door Panel-white/clear		Appelez-nous	-
26	5303943080		Trim-rh And Lh Side		Appelez-nous	-
27	154103603		Trim-bottom		Appelez-nous	-
28	154142901		Cover-spring		Appelez-nous	-
