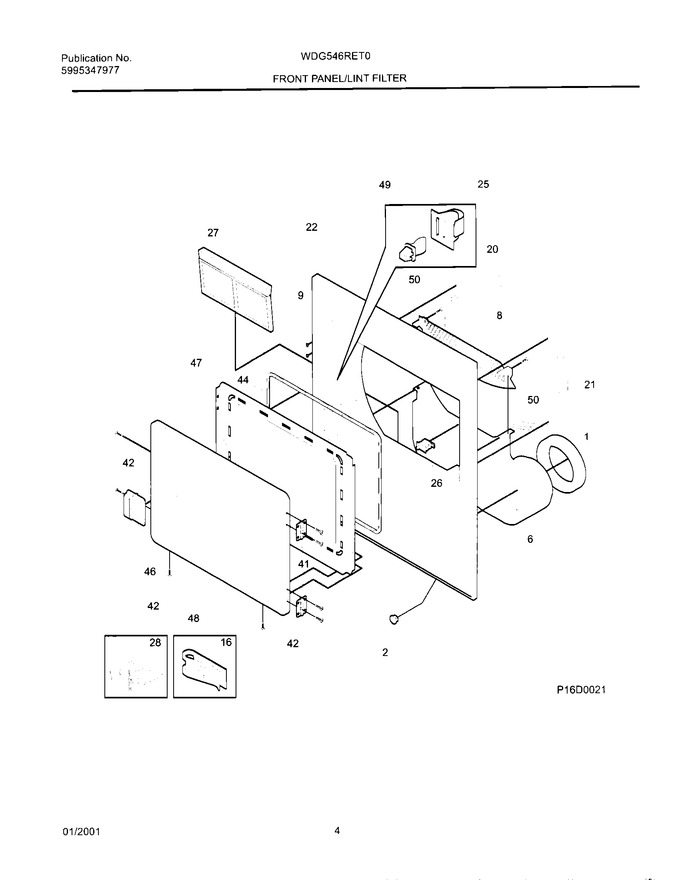

SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


04 - Front Panel/lint Filter


06 - Controls/top Panel


08 - Motor


10 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131397001		Plug-dome-almond		Appelez-nous	-
6	131621900		Duct-air		Appelez-nous	-
8	131622202		Cover-lint Housing				$ 94.82
9	131633201		Plug-almond		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937139)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131845923		Panel-front No Lite Alm		Appelez-nous	-
25	131658800		Catch-door			Immediately	$ 68.38
26	134813600		Switch-door W/o Lite   (Replaces: 131843100)			Immediately	$ 43.09
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(2)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131644701		Door Handle-almond		Appelez-nous	-
47	131844105		Door-inner Alm Fs Dryer		Appelez-nous	-
48	131789304		Door-outer Almond		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
NI	131474700		Insulation				$ 33.67
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	137576600		Plug-light Hole   (Replaces: 131870700)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
