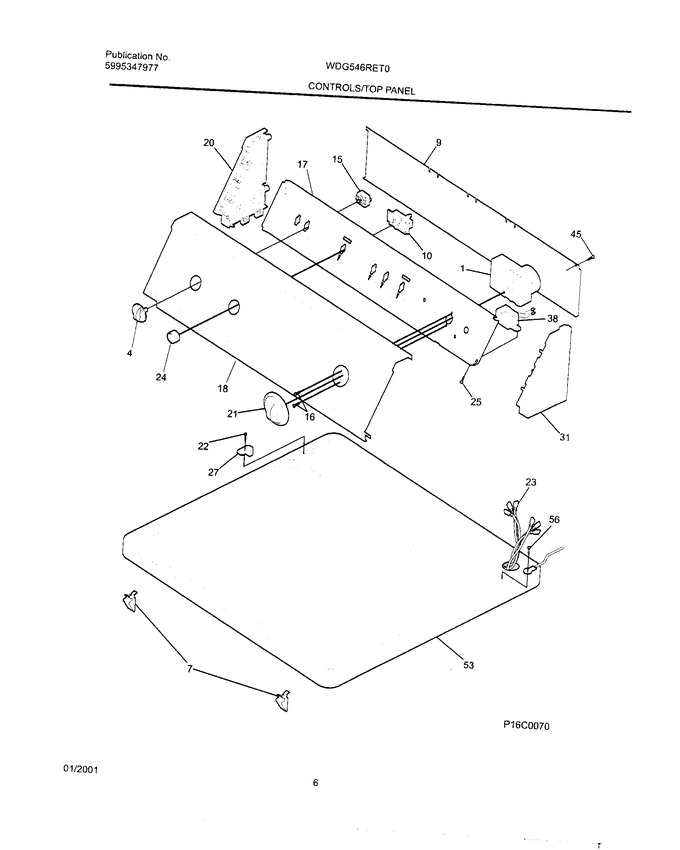

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131786604		Knob-rot-alm/dk Brn		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131509500		Panel-control,almond		Appelez-nous	-
20	5303318524		End Cap,almond ,lh		Appelez-nous	-
21	131118904		Knob-timer, Almond		Appelez-nous	-
22	131266320		Screw-18x1.250 Poh Ab Alm Hd,18x1.250 ,poh Ab Alm Hd		Appelez-nous	-
23	131847000		Harness Prj Gas		Appelez-nous	-
24	131111505		Button-start Switch,almond		Appelez-nous	-
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	5303318525		End Cap,almond ,rh		Appelez-nous	-
38	5303210285		Buzzer				$ 65.78
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601319		Panel-top Almond		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	131048100		Switch, Temperature		Appelez-nous	-
NI	134007800		Bezel-w/west-alm/blk Print		Appelez-nous	-
