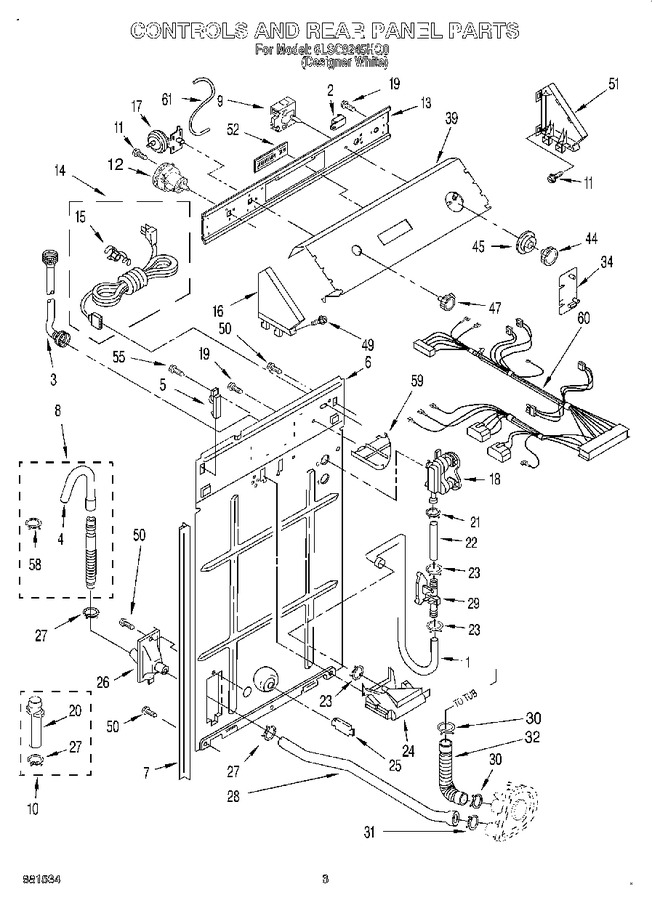

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 19.21
2	WP90767		Screw, Buzzer   (Replaces: 90767)			Immediately	$ 7.04
2	3952439		Buzzer, Mini		Appelez-nous	-
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3366916)				$ 70.16
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	8054302		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	W10915367		Screw, Timer   (Replaces: 3400808)		Appelez-nous	-
9	3952255		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	285750		(kit-adapter) (includes. Item) (20. And 27.)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 79.17
13	3950194		Bracket, Control		Appelez-nous	-
14	3353308		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	3358513		Cap, End (l.h.)		Appelez-nous	-
17	3952438		Switch, Dispensor Level		Appelez-nous	-
18	8054308		Valve, Water Mixing		Appelez-nous	-
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 7.91
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	3349366		Hose, Sensor (lower)		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
31	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
32	285871		Hose, Pump To Tub   (Replaces: 3950340)			Immediately	$ 24.01
34	3407154		Control, Atc		Appelez-nous	-
39	3952445		Panel, Console		Appelez-nous	-
44	W10807860		Knob, Timer   (Replaces: 3948580)			Immediately	$ 44.97
45	WP3957841		Dial, Timer   (Replaces: 3950762)				$ 40.82
47	WP3957796		Knob, Control   (Replaces: 3950759)			Immediately	$ 49.35
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358528		Cap , End (r.h.)		Appelez-nous	-
52	3952441		Switch, Clean Touch (8 Pad)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 6.80
59	3348424		Sheild, Suds		Appelez-nous	-
60	3952430		Harness, Wiring (for Detail See Page 6.) Also See Clips.		Appelez-nous	-
61	3363653		Hose, Pressure		Appelez-nous	-
