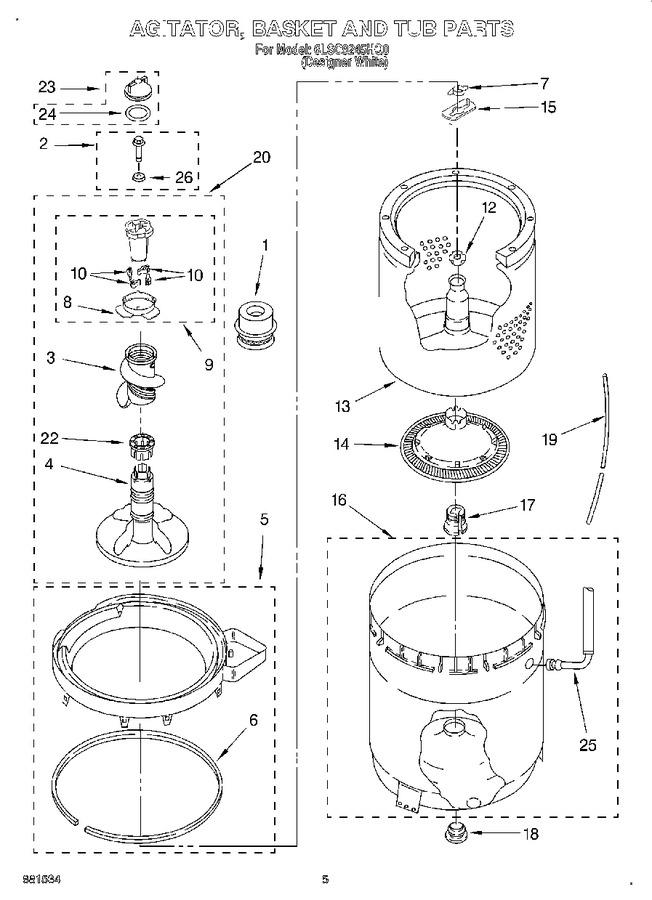

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP63594 | Dispensor Assembly (Replaces: 63594) |
|
Immediately | $ 29.75 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | 3950843 | Clothes Mover |
|
- | |||||
| 4 | WP3947517 | Agitator (Replaces: 3947517) |
|
$ 174.97 | |||||
| 5 | 3949216 | Tub Ring & Gasket |
|
- | |||||
| 6 | 3361946 | Gasket, Tub Ring |
|
- | |||||
| 7 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 21.20 | |||||
| 8 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 7.06 | |||||
| 9 | 285748 | Cam Driven Long (Replaces: 3363662) |
|
Immediately | $ 32.18 | ||||
| 10 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 13 | 3952504 | Basket & Balance Ring |
|
- | |||||
| 14 | 285868 | Filter-plate (Replaces: 3361948) |
|
Immediately | $ 19.51 | ||||
| 15 | WP8543666 | Washer, Agitator (Replaces: 3355921) |
|
Immediately | $ 10.55 | ||||
| 16 | 63849 | Tub (includes Item 25) |
|
$ 262.53 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347779) |
|
Immediately | $ 53.94 | ||||
| 20 | WP8538246 | Agitator Asy. (complete) (Replaces: 3949710) |
|
$ 315.79 | |||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 23 | WP3362061 | Cap, Barrier (Replaces: 3362061) |
|
Immediately | $ 58.85 | ||||
| 24 | WP358912 | Seal, Inner Cap (Replaces: 358912) |
|
$ 7.09 | |||||
| 25 | 3948705 | Hose, Bleach |
|
$ 19.68 | |||||
| 26 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 |
