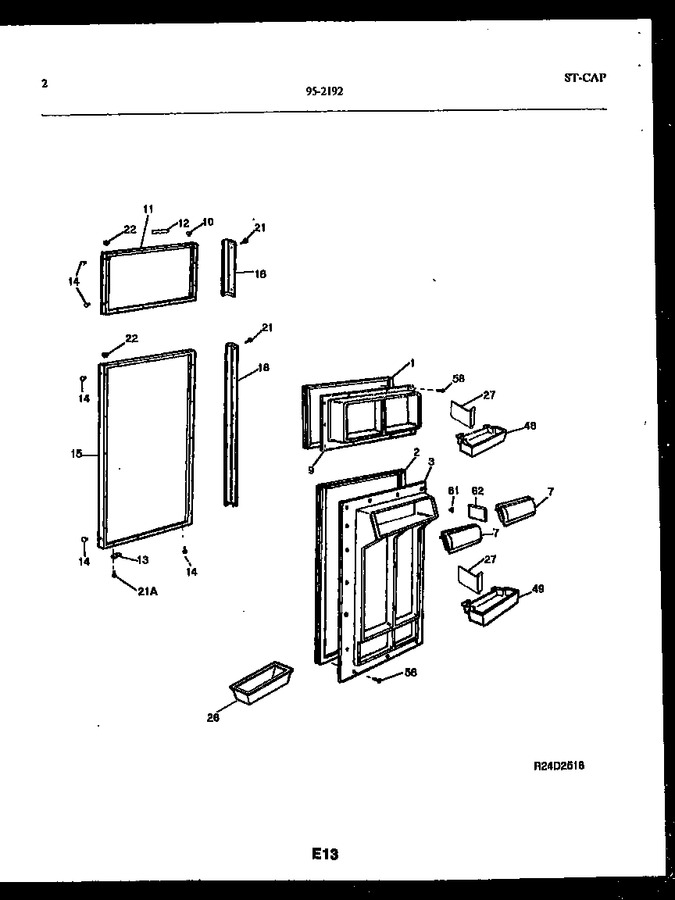

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303272393		Gasket-frzr Door, Magnetic				$ 95.45
2	5303272403		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
7	5303280855		Door-dairy, (2)		Appelez-nous	-
9	5303275724		Panel-inner Door, Frzr		Appelez-nous	-
10	5303272397		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303917164		Panel-frzr Door, Textured, Black		Appelez-nous	-
12	5303272398		Nameplate Assy		Appelez-nous	-
13	5303272399		Door Stop, Frzr		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5303272396		Plug-button, Black, Handle/dr Stop		Appelez-nous	-
15	5303917165		Panel-refr Door, Textured, Black		Appelez-nous	-
18	5303272404		Handle-door, 43.94`` Long, Black Satin		Appelez-nous	-
21	5303276869		Screw-handle Mtg, Cr Oval Hd, 10-24(d) X 5/8, Black, (6		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	5303272408		Container-egg		Appelez-nous	-
27	5303275732		Snugger-door Bin, ``paddle Type``, Large		Appelez-nous	-
48	5303280853		Bin-door, 2-liter, White, (6)		Appelez-nous	-
49	5303280842		Bin-door, Gallon, White, (2)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy		Appelez-nous	-
*74483	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
15A	5303275660		Brace, Cross (non Illustrated)		Appelez-nous	-
18A	5303272400		Handle-door, 19.25`` Long, Black Satin		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
27A	5303279906		Snugger-door Bin, ``paddle Type``, Small (non-illustrated)		Appelez-nous	-
