SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts

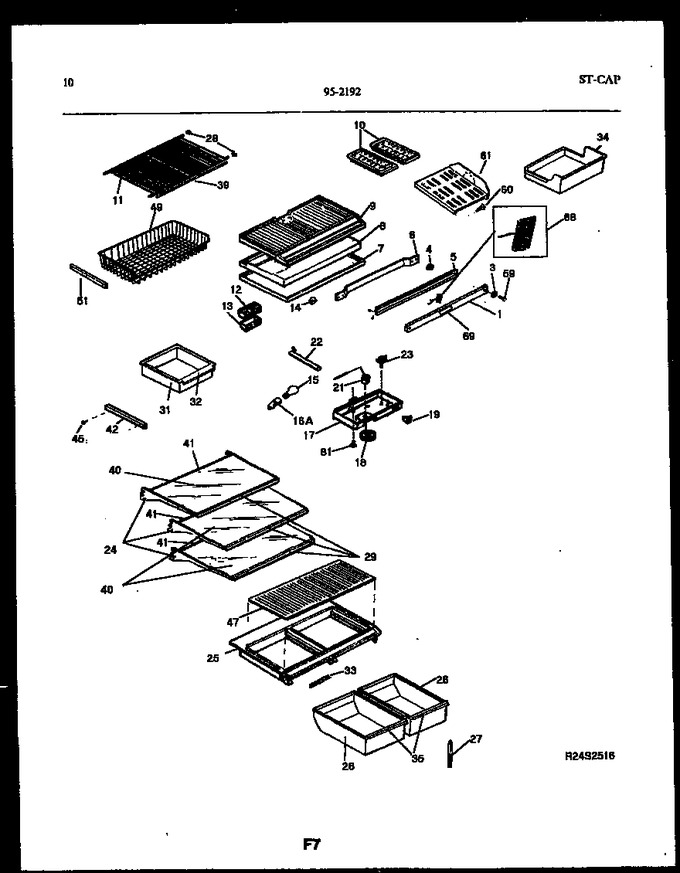

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	5303272413		Pan-crisper, Lh		Appelez-nous	-
26	5303272409		Pan-crisper Rh		Appelez-nous	-
27	5303206505		Support-crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303272407		Trim-refr Shelf, (3)		Appelez-nous	-
31	5303280682		Pan-meat		Appelez-nous	-
32	5303272417		Trim-meat Pan		Appelez-nous	-
33	5308009647		Gasket-crisper Cvr, 10.25``		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
34	5303272411		Container-ice		Appelez-nous	-
35	5303272412		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303272410		Trim-crisper Pan, Rh		Appelez-nous	-
39	5303272405		Trim-frzr Shelf		Appelez-nous	-
40	5303272406		Shelf-glass, (3)		Appelez-nous	-
41	5303210045		Trim-full Shelf, Snap-on, Rear, (3)		Appelez-nous	-
42	5303210016		Hanger, Meat Pan, Lh				$ 134.09
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303272416		Insert-crisper Cvr, Glass		Appelez-nous	-
49	5303206649		Basket-sliding, Full-width, Frzr		Appelez-nous	-
51	5303206522		Hanger-basket Lh		Appelez-nous	-
59	5308012258		Screw				$ 2.25
60	5308010253		Screw		Appelez-nous	-
61	5318609501		Compartmnt-ice Tray		Appelez-nous	-
68	5303211924		Sensor, Door Ajar		Appelez-nous	-
69	5303272424		Label-dr Ajar Sensr		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*74496	5300170910		Clip-cantilever Shlf				$ 2.60
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
41A	5303211351		Lock-rear Trim (non-illustrated)		Appelez-nous	-
42A	5303210017		Hanger, Meat Pan, Rh (non Illustrated)				$ 107.89
51A	5303206521		Hanger-basket, Rh (non-illustrated)		Appelez-nous	-
68A	5303211925		Retainer - Sensor (non-illustrated)		Appelez-nous	-
