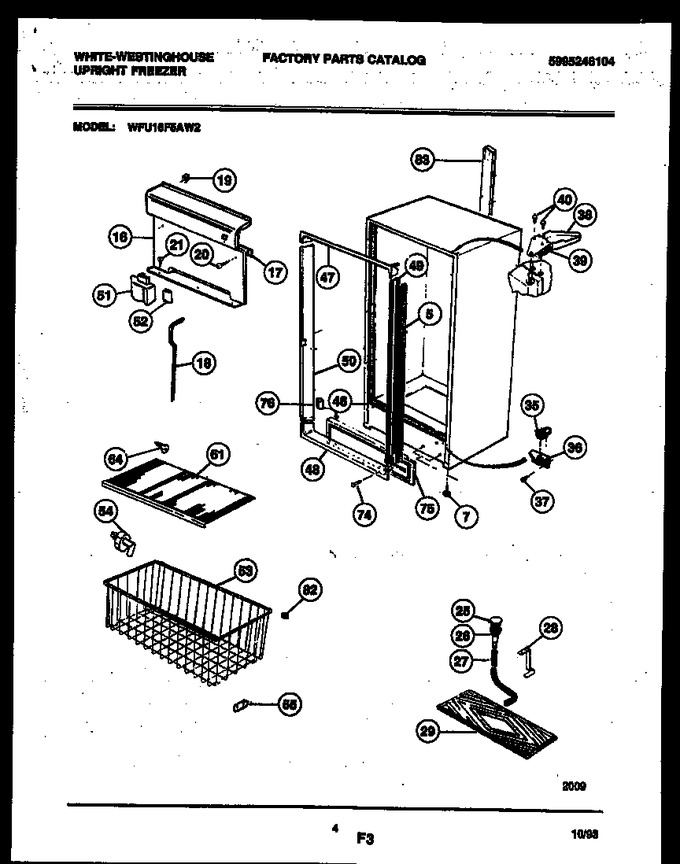

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	09950831		Insulation		Appelez-nous	-
7	216218100		Leveler (4)				$ 25.25
16	216230300		Cover, Control				$ 49.88
17	06599547		Spacer		Appelez-nous	-
18	06599551		Gasket		Appelez-nous	-
19	09948978		Nut (6)		Appelez-nous	-
20	3161215		Screw - (6)		Appelez-nous	-
21	216036600		Screw (3)		Appelez-nous	-
25	216503100		Screen   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	08037416		Tube		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Pan		Appelez-nous	-
35	5303210424		Ramp, Door Closer		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303925086		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-hinge		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	216085900		Breaker, Top		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216108801		Breaker-hinge		Appelez-nous	-
50	216108901		Breaker, Lock Side		Appelez-nous	-
51	216013600		Support, Lock		Appelez-nous	-
52	216013700		Clip Lock		Appelez-nous	-
53	08010201		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide (4)				$ 35.25
61	216266701		Shelf-upper (3)		Appelez-nous	-
64	216261100		Support-front-rear (19)		Appelez-nous	-
65	08005520		Screw-door Stop		Appelez-nous	-
66	06594537		Insert, Nut		Appelez-nous	-
74	5309950066		Pin (2)		Appelez-nous	-
75	216250000		Toe Grille		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-
82	5305878546		Bumper				$ 7.23
83	216009000		Cover-wire		Appelez-nous	-
61A	216266801		Shelf-lower (1)		Appelez-nous	-
