02 - Door Parts
03 - Cabinet Parts

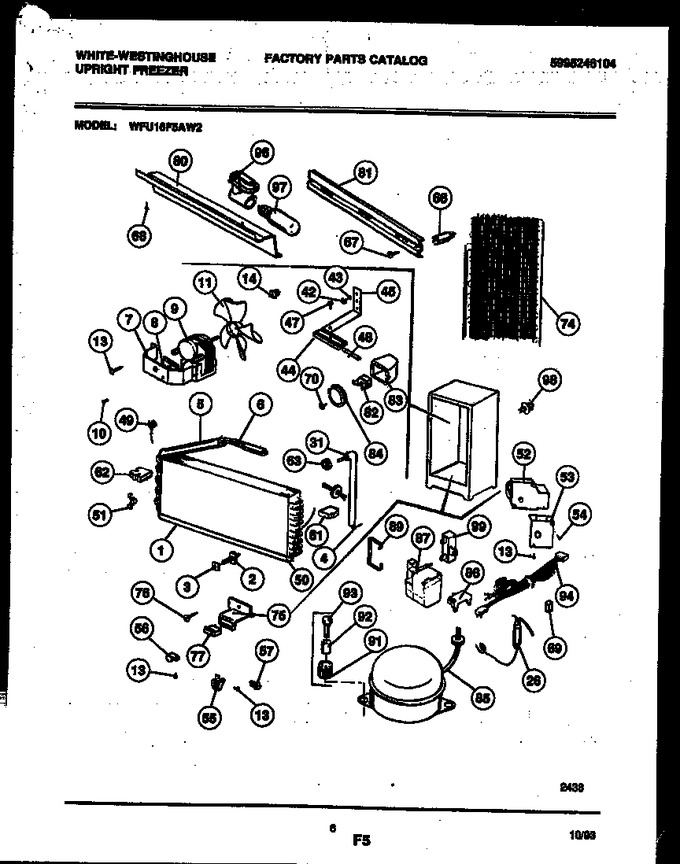

04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216195900 | Evaporator |
|
$ 246.91 | |||||
| 2 | 06599544 | Support, Evaporator |
|
- | |||||
| 3 | 06599546 | Spacer-support, Evaporator |
|
- | |||||
| 4 | 5303272332 | Heat Exchanger |
|
- | |||||
| 5 | 216502500 | Sleeve (Replaces: 5303207297) |
|
$ 10.85 | |||||
| 6 | 5303208489 | Sleeve (2) |
|
- | |||||
| 7 | 08013207 | Bracket |
|
$ 12.92 | |||||
| 8 | 5300164002 | Gasket |
|
- | |||||
| 9 | 3205519 | Fan Motor |
|
- | |||||
| 10 | 06594542 | Screw |
|
- | |||||
| 11 | 3205520 | Fan Blade |
|
- | |||||
| 13 | 216858001 | Screw (4) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 14 | 301036 | Nut (2) (Replaces: 3017666) |
|
$ 15.90 | |||||
| 26 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 31 | 09948773 | Insulation |
|
$ 12.60 | |||||
| 42 | 08009412 | Screw |
|
- | |||||
| 43 | 5300095480 | Washer |
|
- | |||||
| 44 | 05878562 | Clamp |
|
- | |||||
| 45 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 47 | 5300052943 | Screw |
|
$ 5.30 | |||||
| 48 | 08037932 | Sleeve |
|
- | |||||
| 49 | 5303016814 | Switch, Termination |
|
- | |||||
| 50 | 5306599535 | Heater |
|
- | |||||
| 51 | 06599536 | Clip, Heater |
|
- | |||||
| 52 | 5308037967 | Timer |
|
- | |||||
| 53 | 08016580 | Bracket |
|
- | |||||
| 54 | 08037849 | Screw (2) |
|
$ 8.98 | |||||
| 55 | 5303017718 | Clamp |
|
- | |||||
| 56 | 06599553 | Clip, Wires |
|
- | |||||
| 57 | 05878556 | Clip, Compressor Wire |
|
- | |||||
| 61 | 06599531 | Air Seal, Rh |
|
- | |||||
| 62 | 3017674 | Air Seal, Lh |
|
- | |||||
| 63 | 06594629 | Grommet |
|
- | |||||
| 66 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 67 | 5303285470 | Screw-baffle Plate |
|
- | |||||
| 68 | 5303283893 | Light Screw-shield |
|
- | |||||
| 69 | 09950610 | Clip |
|
- | |||||
| 70 | 09950853 | Screw, Knob |
|
- | |||||
| 74 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 75 | 216009101 | Bracket |
|
- | |||||
| 76 | 08037851 | Screw |
|
$ 3.57 | |||||
| 77 | 06594648 | Signal Light, Amber |
|
- | |||||
| 80 | 216241601 | Shield-light |
|
- | |||||
| 81 | 5303288233 | Baffle |
|
- | |||||
| 82 | 216215900 | Control, Temperature |
|
- | |||||
| 83 | 216230300 | Cover |
|
$ 49.88 | |||||
| 84 | 216008801 | Knob |
|
- | |||||
| 85 | 5303917190 | Compressor |
|
- | |||||
| 86 | 5308037789 | Overload |
|
- | |||||
| 87 | 216008900 | Relay |
|
- | |||||
| 89 | 215012000 | Clamp |
|
$ 2.63 | |||||
| 91 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 92 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 93 | 5303272328 | Screw (3) |
|
$ 10.34 | |||||
| 94 | 216234800 | Harness |
|
- | |||||
| 96 | 5300136117 | Socket |
|
$ 52.46 | |||||
| 97 | 5304517886 | Bulb (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 98 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 99 | 5304464438 | Capacitor-run (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| *82296 | 08016777 | Clip-power Cord To Outlet |
|
- |
