SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Drawer


05 - Oven


06 - Top Assembly


07 - Wiring Information

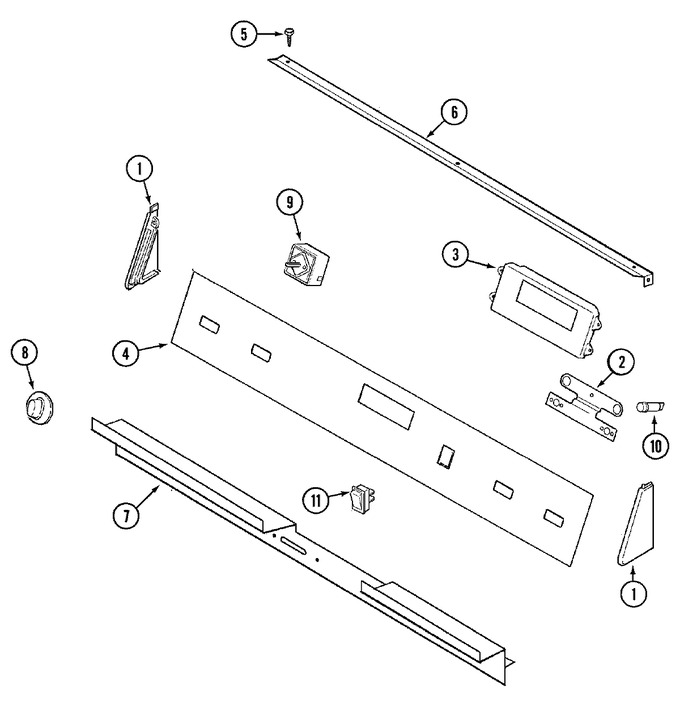

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002039		End Cap (lt-wht)	01	Appelez-nous	-
1	71002038		End Cap (rt-wht)	01	Appelez-nous	-
2	71002046		Bracket, Lock Light	01	Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)	01		Immediately	$ 7.15
3	71002331CP		Clock   (Replaces: 71002331)	01	Appelez-nous	-
4	71002446		Switch, Membrane (wht)	01	Appelez-nous	-
5	71001827		Screw	01	Appelez-nous	-
6	71002043		Support, Control Panel	01	Appelez-nous	-
7	71002045		Trim, Control Panel (wht)	01	Appelez-nous	-
8	71002713		Knob, Switch (wht)	12			$ 22.49
8	71002057		Knob, Switch (gray)	01	Appelez-nous	-
8	71002236		Knob, Switch (dual-wht)	01	Appelez-nous	-
8	71002714		Knob, Switch (dual-wht)	12	Appelez-nous	-
9	12002125		Switch, Dual   (Replaces: 71001612)	01		Immediately	$ 79.23
9	12002125		Switch, Dual Element(series M)   (Replaces: 74007715)	02		Immediately	$ 79.23
9	W11120791		Switch, Infinite   (Replaces: 703650)	01		Immediately	$ 98.55
9	WP488234		Screw (no.8-1/4``)   (Replaces: 71002147)	01			$ 6.07
10	71001301		Light, Lock	01	Appelez-nous	-
11	WP4314961		Switch, Oven Light (wht)   (Replaces: Y04100458)	01			$ 80.53
12	71002203		Harness, Infinite	01	Appelez-nous	-
12	71002201		Harness, Door Lock	01	Appelez-nous	-
12	71002204		Harness, Relay Board	01	Appelez-nous	-
12	71002200		Harness, Control	01	Appelez-nous	-
12	71002059		Harness, Hi-limit	01	Appelez-nous	-
12	Y04100479		Harness, Hotlight	01	Appelez-nous	-
12	71002051		Harness, Cooling Fan	01	Appelez-nous	-
13	71002447		Manual, Use & Care	01	Appelez-nous	-
14	16000326		Guide, Quick Ref - Jenn-air	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
