01 - Body
02 - Control Panel
03 - Door
04 - Drawer
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

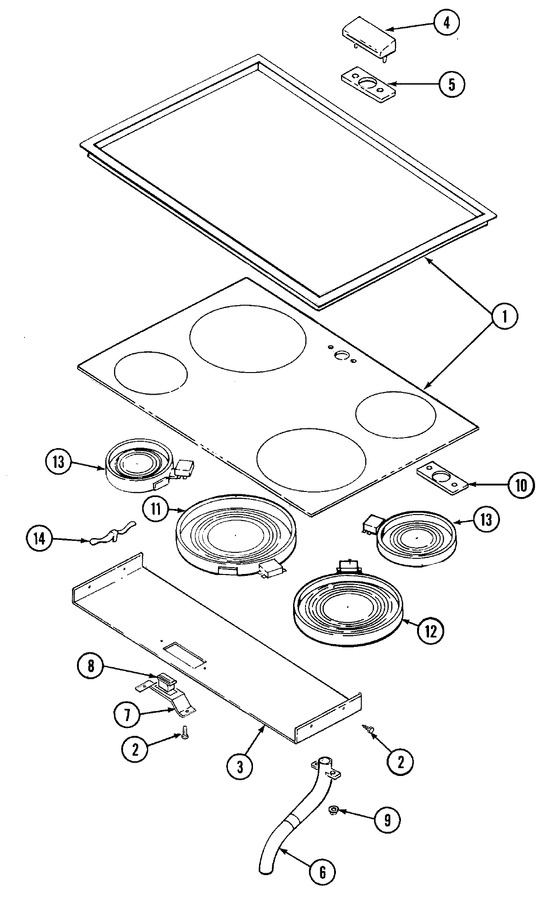

| 1 | 71002241 | Top Assy. (wht) | 01 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 3 | 71002237 | Plate, Element Support | 01 |
|
- | ||||
| 3 | 71002238 | Plate, Element Support | 01 |
|
- | ||||
| 4 | Y04100311 | Trim, Vent (wht) | 01 |
|
- | ||||
| 5 | Y04100462 | Gasket | 01 |
|
- | ||||
| 6 | 71002239 | Tube, Vent | 01 |
|
- | ||||
| 7 | 04100476 | Bracket, Mounting | 01 |
|
- | ||||
| 8 | Y04100477 | Light, Pilot | 01 |
|
- | ||||
| 9 | 7103P166-60 | Palnut (Replaces: 715500) | 01 |
|
$ 15.91 | ||||
| 10 | Y04100478 | Spacer | 01 |
|
- | ||||
| 11 | W10823694 | Element, Dual Rad.(2400/1000w) (Replaces: 71002168) | 01 |
|
Immediately | $ 320.29 | |||
| 12 | W10823707 | Element, Radiant (2200w) (Replaces: 71001424) | 01 |
|
Immediately | $ 316.13 | |||
| 13 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 01 |
|
Immediately | $ 309.01 | |||
| 14 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 01 |
|
$ 10.51 |
