01 - Body
02 - Control Panel
03 - Door
04 - Drawer
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

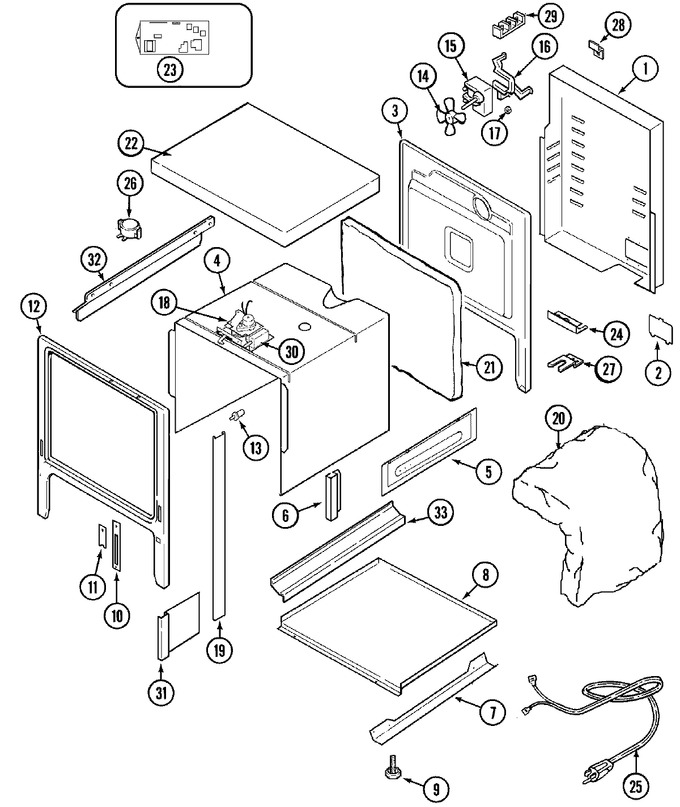

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002065 | Cover, Main Back | 01 |
|
- | ||||
| 2 | 71002066 | Panel, Access | 01 |
|
- | ||||
| 3 | 71003032 | Back, Main | 01 |
|
- | ||||
| 4 | 71002068 | Panel (side-top-side) | 01 |
|
- | ||||
| 5 | 71002070 | Panel, Side (lt) | 01 |
|
- | ||||
| 5 | 71002069 | Panel, Side (rt) | 01 |
|
- | ||||
| 6 | 71002206 | Receptacle, Hinge | 01 |
|
$ 37.12 | ||||
| 7 | 71002076 | Rail, Bottom | 01 |
|
- | ||||
| 8 | 71002071 | Panel, Bottom | 01 |
|
- | ||||
| 9 | Y04100573 | Leveler, Leg | 01 |
|
$ 25.32 | ||||
| 10 | 71002072 | Plate, Hinge Cover | 01 |
|
- | ||||
| 11 | 71002077 | Plate, Hinge Retainer | 01 |
|
- | ||||
| 12 | 71001186 | Frame, Oven | 01 |
|
- | ||||
| 12 | 71003087 | Frame, Oven | 11 |
|
- | ||||
| 13 | 71001129 | Switch, Door Lock | 01 |
|
- | ||||
| 14 | 71001852 | Blade, Fan | 01 |
|
- | ||||
| 15 | 71001851 | Fan Motor Assy. | 01 |
|
- | ||||
| 16 | 71001853 | Bracket, Fan | 01 |
|
- | ||||
| 17 | M0282005 | Nut, Hex (Replaces: 701719) | 01 |
|
$ 7.07 | ||||
| 18 | 71001845 | Latch, Door Assy. | 01 |
|
$ 160.79 | ||||
| 19 | 71002078 | Trim, Side | 01 |
|
- | ||||
| 19 | 71002074 | Clip, Side Trim | 01 |
|
- | ||||
| 19 | 71002647 | Trim, Side (wht) | 15 |
|
- | ||||
| 20 | 71001817 | Insulation (wrap) | 01 |
|
- | ||||
| 21 | 71002073 | Insulation, Back | 01 |
|
- | ||||
| 22 | 71001820 | Insulation (top-btm) | 01 |
|
- | ||||
| 23 | 74004836 | Shield, Relay (7.33x5) | 10 |
|
- | ||||
| 23 | 71002594 | Board, Relay(bake/broil Conv.) | 01 |
|
- | ||||
| 24 | 71002960 | Bracket, Electric Mtg | 01 |
|
- | ||||
| 27 | WP67006908 | Screw (Replaces: 712092) | 01 |
|
Immediately | $ 7.16 | |||
| 27 | Y705344 | Bracket, Anti-tip | 01 |
|
$ 5.51 | ||||
| 29 | WP8203546 | Block, Terminal (Replaces: Y702284) | 01 |
|
Immediately | $ 27.12 | |||
| 30 | 71002904 | Switch, Door Light | 01 |
|
$ 63.99 | ||||
| 31 | 71002103 | Panel, Kick (side/wht) | 01 |
|
- | ||||
| 31 | 704827K | Tape, Dbl. Sided | 01 |
|
- | ||||
| 32 | 71002242 | Guard, Wire (lt) | 01 |
|
- | ||||
| 33 | 71002208 | Guard, Wire (rt) | 01 |
|
- |
