View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Drawer
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

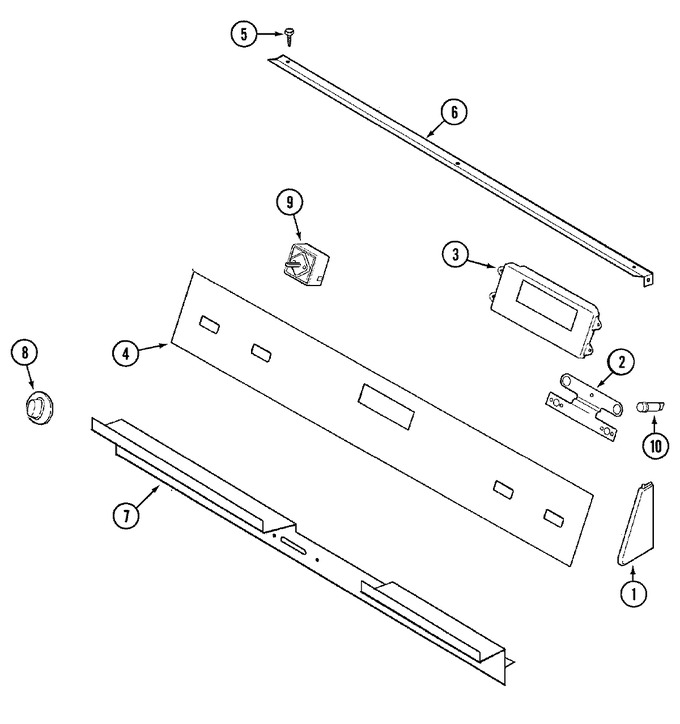

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002545 | Screw | 01 |
|
- | ||||
| 1 | 71002039 | End Cap (lt-wht) | 01 |
|
- | ||||
| 1 | WP12990527 | Screw (Replaces: Y708955) | 01 |
|
Immediately | $ 7.15 | |||
| 1 | 71002038 | End Cap (rt-wht) | 01 |
|
- | ||||
| 1 | 71003013 | End Cap (rt-wht) | 16 |
|
- | ||||
| 1 | 71003012 | End Cap (lt-wht) | 16 |
|
- | ||||
| 2 | 71002046 | Bracket, Lock Light | 01 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 01 |
|
Immediately | $ 7.15 | |||
| 3 | WP71001799 | Clock (Replaces: 71001799) | 01 |
|
Immediately | $ 371.25 | |||
| 4 | 71002234 | Overlay Assy. Membrane (wht) | 01 |
|
- | ||||
| 5 | 71001827 | Screw | 01 |
|
- | ||||
| 6 | 71002043 | Support, Control Panel | 01 |
|
- | ||||
| 7 | 71003017 | Trim, Control Panel (wht) | 16 |
|
- | ||||
| 7 | 71002045 | Trim, Control Panel (wht) | 01 |
|
- | ||||
| 8 | 71002713 | Knob, Switch (wht) | 13 |
|
$ 22.49 | ||||
| 8 | 71002236 | Knob, Switch (dual-wht) | 01 |
|
- | ||||
| 8 | 71002057 | Knob, Switch (gray) | 01 |
|
- | ||||
| 8 | 71002714 | Knob, Switch (dual-wht) | 13 |
|
- | ||||
| 9 | 12002125 | Switch, Dual (Replaces: 71001612) | 01 |
|
Immediately | $ 79.23 | |||
| 9 | 12002125 | Switch, Dual Element(series M) (Replaces: 74007715) | 02 |
|
Immediately | $ 79.23 | |||
| 9 | W11120791 | Switch, Infinite (Replaces: 703650) | 01 |
|
Immediately | $ 98.55 | |||
| 9 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 01 |
|
$ 6.07 | ||||
| 10 | 71001301 | Light, Lock | 01 |
|
- | ||||
| 11 | 71002059 | Harness, Hi-limit | 01 |
|
- | ||||
| 11 | 71003181 | Harness, Door Lock | 18 |
|
- | ||||
| 11 | 71002053 | Harness, Oven Sensor (j10) | 01 |
|
- | ||||
| 11 | 71003186 | Harness, Control | 19 |
|
- | ||||
| 11 | 71003182 | Harness, Oven Lamp | 18 |
|
- | ||||
| 11 | 71002048 | Harness, Control (j2) | 01 |
|
- | ||||
| 11 | 71002049 | Harness, Supply (j1) | 01 |
|
- | ||||
| 11 | 71002050 | Harness, Door Lock | 01 |
|
- | ||||
| 11 | 71002051 | Harness, Cooling Fan | 01 |
|
- | ||||
| 11 | Y04100479 | Harness, Hotlight | 01 |
|
- | ||||
| 11 | 71002054 | Harness, Infinite | 01 |
|
- | ||||
| 11 | 71002117 | Harness, Convect | 01 |
|
- | ||||
| 11 | 71003030 | Harness, Hi-limit | 17 |
|
- | ||||
| 12 | 71002643 | Manual, Use & Care | 01 |
|
- |
