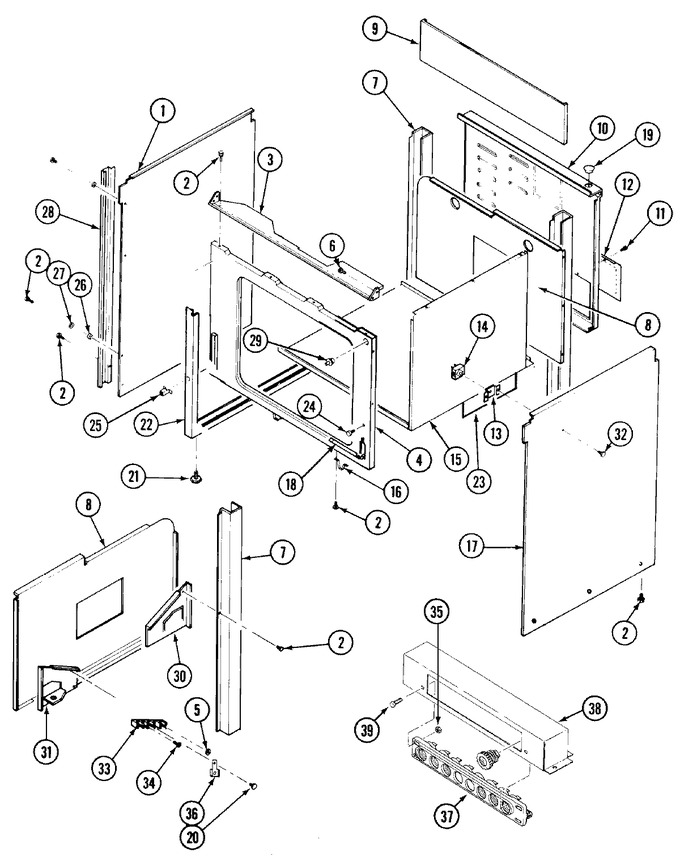

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100629 | Panel, Side (lh) | 11 |
|
- | ||||
| 1 | 704302 | Panel, Inner (lt) | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | 712002 | Angle, Mount | 11 |
|
- | ||||
| 4 | 04100473 | Closure, Front | 11 |
|
- | ||||
| 5 | 707161 | Nut | 11 |
|
- | ||||
| 6 | 702731 | Screw | 11 |
|
- | ||||
| 7 | 704296 | Support,tube | 11 |
|
- | ||||
| 8 | Y704735 | Back, Inner | 11 |
|
- | ||||
| 9 | 704293 | Back, Unit | 11 |
|
- | ||||
| 10 | 704294 | Cover, Rear | 11 |
|
- | ||||
| 11 | WPY706189 | Screw (Replaces: 700906) | 11 |
|
Immediately | $ 6.47 | |||
| 12 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 13 | 704337 | Bracket | 11 |
|
- | ||||
| 14 | 704355 | Switch, Broil Cycle | 11 |
|
- | ||||
| 15 | 71001112 | Panel, Bottom & Side | 11 |
|
- | ||||
| 15 | 702336 | Angle, Oven Support | 11 |
|
- | ||||
| 16 | 702658 | Bracket, Hat | 11 |
|
- | ||||
| 17 | 04100628 | Panel, Side (rh) | 11 |
|
- | ||||
| 18 | Y04100337 | Hinge, Oven Door | 11 |
|
- | ||||
| 19 | Y04100503 | Relief, Strain | 11 |
|
- | ||||
| 20 | WP71001171 | Screw (Replaces: Y712004) | 11 |
|
$ 6.26 | ||||
| 21 | Y04100573 | Leveler, Leg | 11 |
|
$ 25.32 | ||||
| 22 | 712000 | Rail, Support Assembly | 11 |
|
- | ||||
| 23 | 704466 | Baffle, Inner | 11 |
|
- | ||||
| 24 | 715870 | Screw | 11 |
|
- | ||||
| 25 | 708763 | Clip----s | 11 |
|
- | ||||
| 26 | 00702462 | Washer, Conical (Replaces: 702462) | 11 |
|
$ 1,015.54 | ||||
| 27 | 712005 | Washer, Flat | 11 |
|
- | ||||
| 28 | 702337 | Trim, Side | 11 |
|
- | ||||
| 29 | 701666 | Switch, Door | 11 |
|
- | ||||
| 30 | 702557 | Gussett (lt) | 11 |
|
- | ||||
| 31 | 702556 | Gussett (rt) | 11 |
|
- | ||||
| 32 | 704335 | Screw | 11 |
|
- | ||||
| 33 | WP8203546 | Block, Terminal (Replaces: Y702284) | 11 |
|
Immediately | $ 27.12 | |||
| 34 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 34 | WP67006908 | Screw (Replaces: Y703002) | 11 |
|
Immediately | $ 7.16 | |||
| 35 | 707161 | Nut | 11 |
|
- | ||||
| 36 | Y702335 | Strap, Ground | 11 |
|
- | ||||
| 36 | 04100481 | Air Deflector | 11 |
|
- | ||||
| 37 | 71001017 | Block, Fuse | 11 |
|
- | ||||
| 38 | 71001019 | Wire Harness, Fuse | 11 |
|
- | ||||
| 38 | 71001018 | Box, Fuse Block | 11 |
|
- | ||||
| 39 | WP71001171 | Screw, Ground (Replaces: Y703817) | 11 |
|
$ 6.26 | ||||
| 40 | Y702607 | Block, Terminal | 11 |
|
- | ||||
| 40 | Y705344 | Bracket, Anti-tip | 11 |
|
$ 5.51 |
