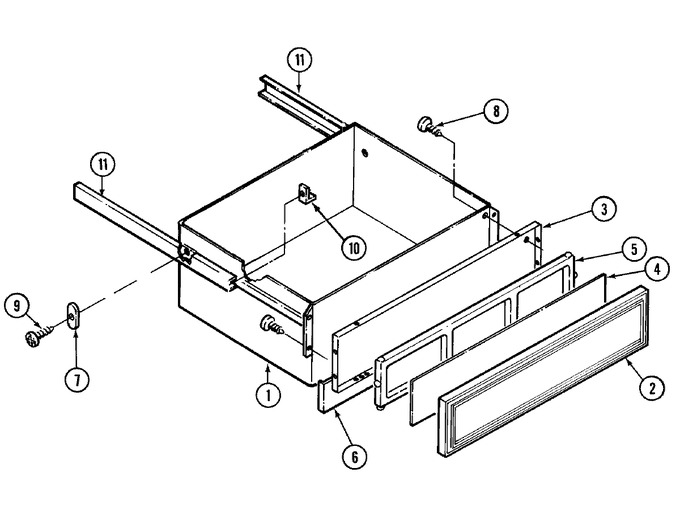

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712608 | Drawer | 11 |
|
- | ||||
| 2 | 704298 | Frame, Drawer (blk)----na | 11 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 3 | Y702341 | Liner, Door | 11 |
|
- | ||||
| 4 | 703435 | Panel, Base | 11 |
|
- | ||||
| 5 | Y702896 | Spacer, Base Door | 11 |
|
- | ||||
| 6 | 703966 | Panel, Kick | 11 |
|
- | ||||
| 7 | 703963 | Slide, Drawer | 11 |
|
- | ||||
| 8 | W11233072 | Screw (blk) (Replaces: Y704237) | 11 |
|
Immediately | $ 12.62 | |||
| 9 | 712066 | Screw | 11 |
|
- | ||||
| 10 | Y703962 | Guide, Drawer | 11 |
|
- | ||||
| 11 | 703967 | Chanel, Drawer (lt) | 11 |
|
- | ||||
| 11 | 703968 | Chanel, Drawer (rt) | 11 |
|
- |
