01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

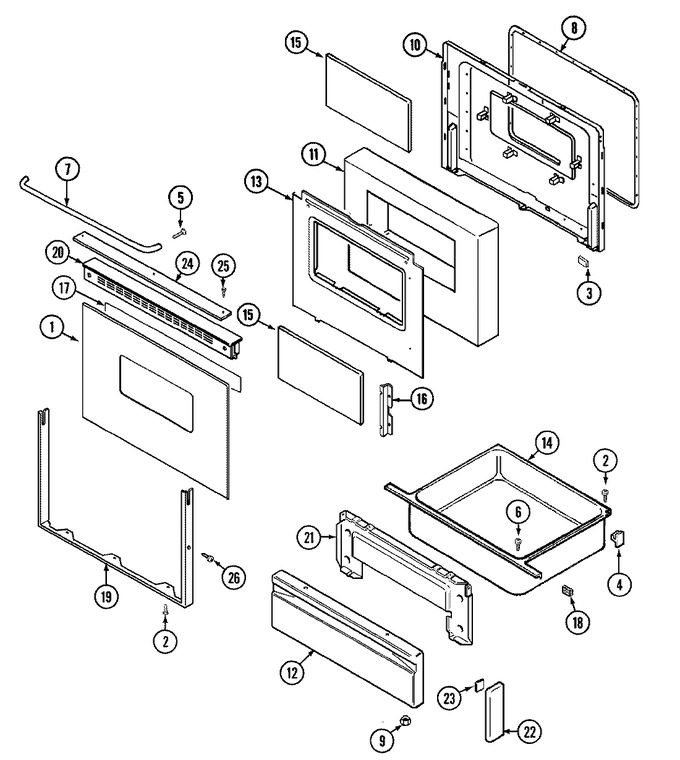

| 1 | 74002058 | Glass, Door (blk) | 11 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 3 | 8010P085-60 | Spacer, Rubber | 11 |
|
- | ||||
| 4 | 74003566 | Roller, Drawer | 24 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 11 |
|
$ 9.29 | ||||
| 5 | 7101P326-60 | Screw | 11 |
|
- | ||||
| 5 | 74001521 | Washer (1``) | 11 |
|
$ 5.27 | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 7 | 74002061 | Handle (blk) | 11 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 11 |
|
Immediately | $ 77.61 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 11 |
|
$ 4.00 | ||||
| 10 | 74003244 | Lining, Door | 23 |
|
- | ||||
| 10 | 7103P136-60 | Nut, Snap | 11 |
|
- | ||||
| 10 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 11 |
|
$ 9.89 | ||||
| 10 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 11 |
|
Immediately | $ 9.91 | |||
| 10 | 2402W209-19 | Lining, Door | 11 |
|
- | ||||
| 11 | 74001842 | Insulation, Door | 11 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 12 | 74001749 | Panel, Drawer (blk) | 11 |
|
- | ||||
| 13 | 74001843 | Baffle, Door | 11 |
|
- | ||||
| 14 | 71003042 | Drawer, Storage | 24 |
|
- | ||||
| 14 | 3405F018-80 | Drawer, Storage | 11 |
|
- | ||||
| 15 | 74001841 | Glass, Inner | 11 |
|
- | ||||
| 16 | 74001844 | Retainer, Glass | 11 |
|
- | ||||
| 17 | 8270P078-60 | Tape, Foil (29 1/2``) | 11 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 11 |
|
$ 11.95 | ||||
| 19 | 7706P309-60 | Frame, Door (blk) | 11 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 20 | 74002065 | Trim, Top (blk) | 11 |
|
- | ||||
| 21 | 74001464 | Lining, Drawer----na | 11 |
|
- | ||||
| 21 | 2404F030-51 | Lining, Drawer Panel | 24 |
|
- | ||||
| 22 | 7744P087-60 | End Cap (blk) | 11 |
|
- | ||||
| 23 | 8270P098-60 | Tape | 11 |
|
$ 5.02 | ||||
| 25 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 11 |
|
$ 15.94 | ||||
| 26 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 11 |
|
$ 15.94 |
