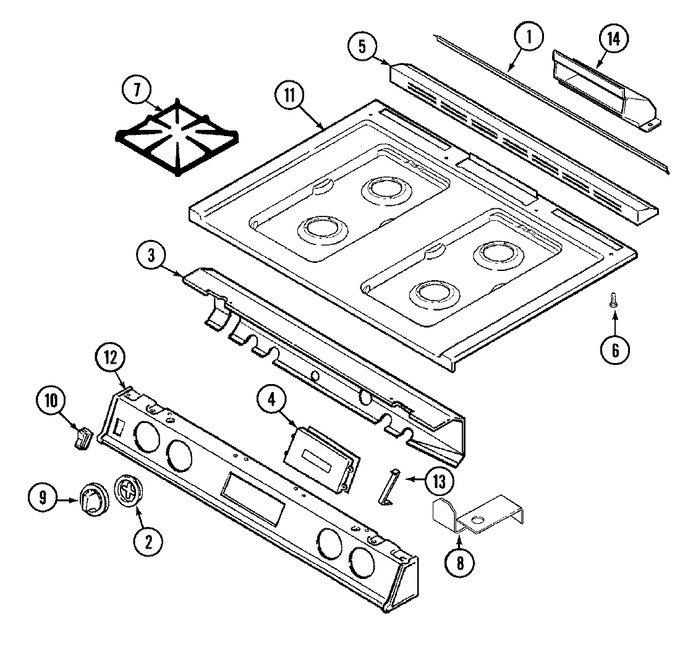

05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7201P061-60 | Gasket | 11 |
|
$ 4.83 | ||||
| 2 | 74002052 | Bezel, Knob (blk) | 11 |
|
- | ||||
| 3 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 11 |
|
$ 6.98 | ||||
| 3 | 74002588 | Cover, Manifold (rear) | 11 |
|
- | ||||
| 4 | 74002950 | Clock (blk) | 11 |
|
- | ||||
| 5 | 4825D001-59 | Cover, Vent Trim | 11 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 7 | 74001769 | Grate, Burner (blk) | 11 |
|
$ 74.59 | ||||
| 8 | 3801F318-51 | Bracket, Top | 11 |
|
- | ||||
| 8 | WPW10068250 | Screw (Replaces: 7101P074-60) | 11 |
|
$ 3.66 | ||||
| 9 | WP74003781 | Knob, Valve (blk) (Replaces: 74002050) | 11 |
|
$ 15.89 | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 11 |
|
$ 91.35 | ||||
| 11 | 74001556 | Top, Main (blk) | 11 |
|
- | ||||
| 12 | 74002959 | Panel, Manifold (blk) | 11 |
|
- | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P346-60) | 11 |
|
Immediately | $ 6.47 | |||
| 13 | 74003191 | Bracket, Clock | 11 |
|
- | ||||
| 14 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 11 |
|
$ 6.98 | ||||
| 14 | 3601F221-45 | Baffle, Vent Cover | 11 |
|
$ 28.30 | ||||
| 15 | 12001323 | Wire/terminal Kit | 11 |
|
- | ||||
| 15 | 5170P228-60 | Harness, Sensor & Lock | 11 |
|
- | ||||
| 15 | 74001575 | Harness, Control/relay | 11 |
|
- | ||||
| 16 | 74002759 | Manual, Use & Care | 11 |
|
- | ||||
| 16 | 16008701 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 17 | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
