SELECT A DIAGRAM
02 - Backguard
03 - Burner

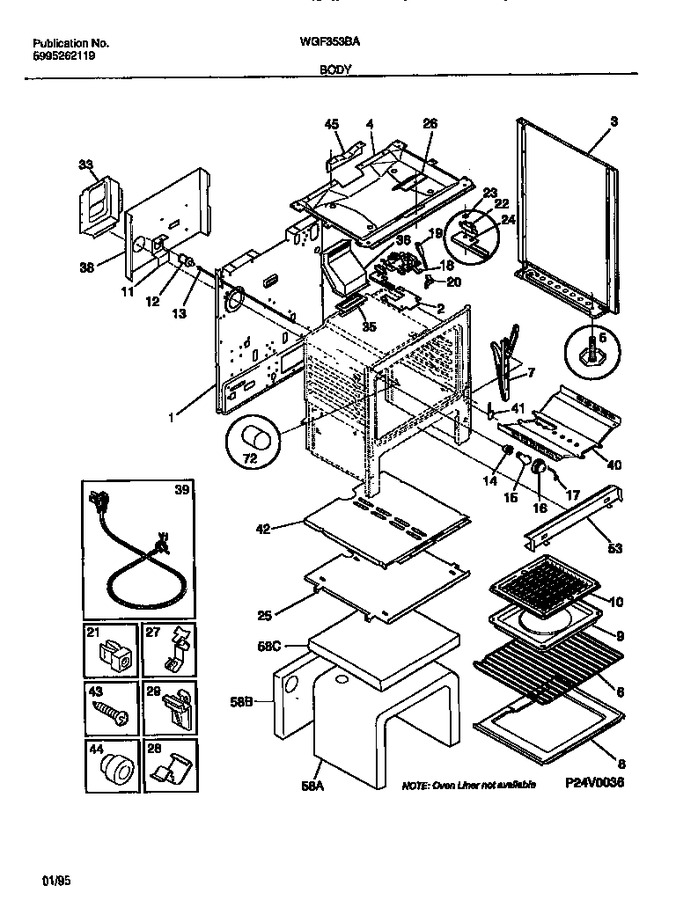

04 - Body
05 - Body
06 - Top/drawer
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 53 | 08067973 | Insulation, Main Front (non-illustrated) |
|
$ 51.74 | |||||
| 53 | 5303271047 | Shield-main Front |
|
- | |||||
| 72 | 5303285692 | Cover-light/switch Rod |
|
- | |||||
| *95844 | 3200846 | Fastener-edge Mtg |
|
- | |||||
| *95845 | 08067961 | Fastener-power Cord |
|
- | |||||
| *95847 | 5303305325 | Touch-up Paint, Almond |
|
- | |||||
| 58A | 3200833 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 316054200 | Insulation, Oven Back |
|
- | |||||
| 58C | 3131304 | Insulation, Oven Top |
|
- |
