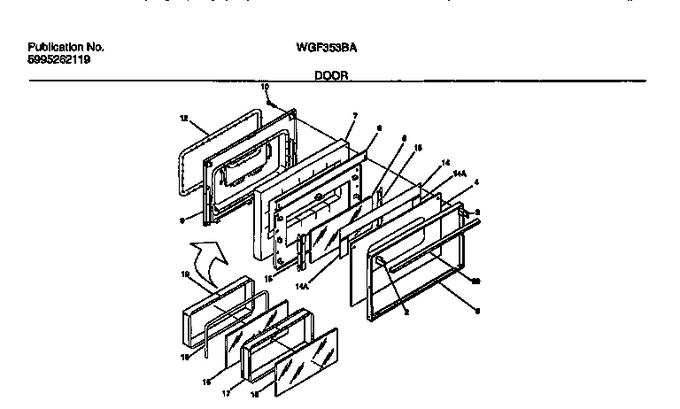

02 - Backguard


03 - Burner


04 - Body


05 - Body


06 - Top/drawer


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal, Rop, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
*95849	316065300		Plate Warning/caution		Appelez-nous	-
*95850	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*95851	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*95852	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*95853	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*95854	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
14A	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
