SELECT A DIAGRAM

03 - Console And Control Parts


04 - Cabinet Parts


05 - Tub Detail


06 - Pump, Water Valve And Water Inlet


07 - Motor And Idler Arm Clutch


08 - Transmission Parts

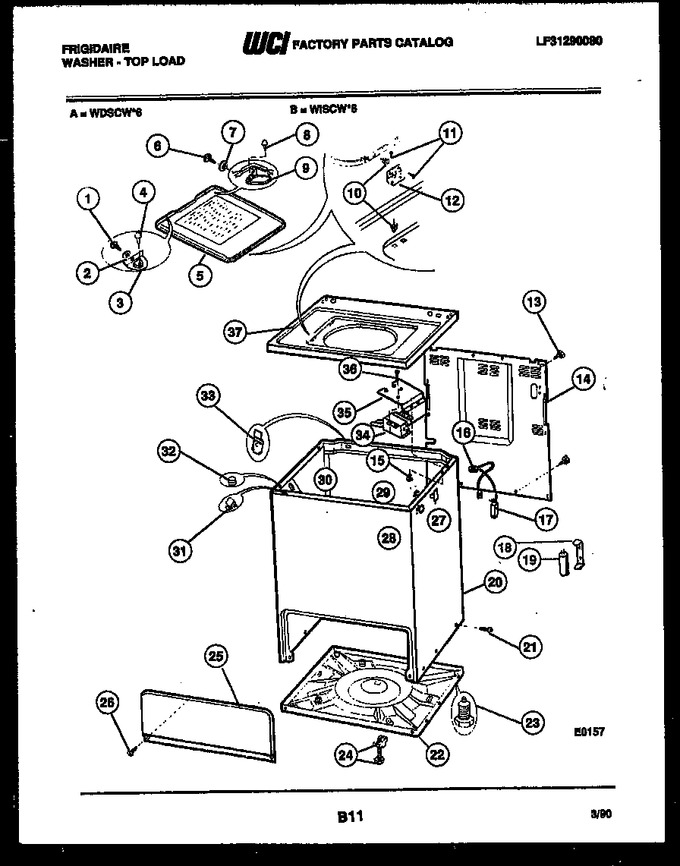

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08002407		Screw		Appelez-nous	-
2	08002408		Washer-nylon		Appelez-nous	-
3	08015519		Bracket-lid		Appelez-nous	-
4	08015520		Bumper		Appelez-nous	-
5	08015524		Lid-washer (white)		Appelez-nous	-
6	08002407		Screws (3)		Appelez-nous	-
7	08002408		Washer (4)		Appelez-nous	-
8	08015520		Bumpers-lid (2)		Appelez-nous	-
9	3018962		Strike		Appelez-nous	-
10	08010830		Grommet Screws (4)		Appelez-nous	-
11	08027483		Screws (4)		Appelez-nous	-
12	08002412		Hinges (2)		Appelez-nous	-
13	08001559		Screws		Appelez-nous	-
14	08011286		Panel-back		Appelez-nous	-
15	08002420		Rivets (2)		Appelez-nous	-
16	08004647		Electrical Service Cord		Appelez-nous	-
17	08015515		Cord-electrical Service		Appelez-nous	-
18	08014902		Bracket - Capacitor		Appelez-nous	-
19	08014903		Capacitor		Appelez-nous	-
20	08015512		Shell-cabinet (white)		Appelez-nous	-
21	08001613		Screws (6)		Appelez-nous	-
22	08011290		Base-washer		Appelez-nous	-
23	08950088		Foot (4)		Appelez-nous	-
24	08004066		Block-shipping & Screw		Appelez-nous	-
25	08015494		Panel-access (white)		Appelez-nous	-
26	08006545		Screws (2)		Appelez-nous	-
27	08011305		Clip, Long		Appelez-nous	-
28	08011304		Clip, Short		Appelez-nous	-
29	08004099		Clips (2)		Appelez-nous	-
30	08001622		Screws (2)		Appelez-nous	-
31	08001597		Clip-spring (2)		Appelez-nous	-
32	08001596		Bumpers (4)		Appelez-nous	-
33	08002384		Hinges-top		Appelez-nous	-
34	3017110		Lock-lid		Appelez-nous	-
35	3018963		Bracket		Appelez-nous	-
36	3018964		Screws (2)		Appelez-nous	-
37	3019080		Panel Top (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
