SELECT A DIAGRAM

03 - Console And Control Parts


04 - Cabinet Parts


05 - Tub Detail


06 - Pump, Water Valve And Water Inlet


07 - Motor And Idler Arm Clutch


08 - Transmission Parts

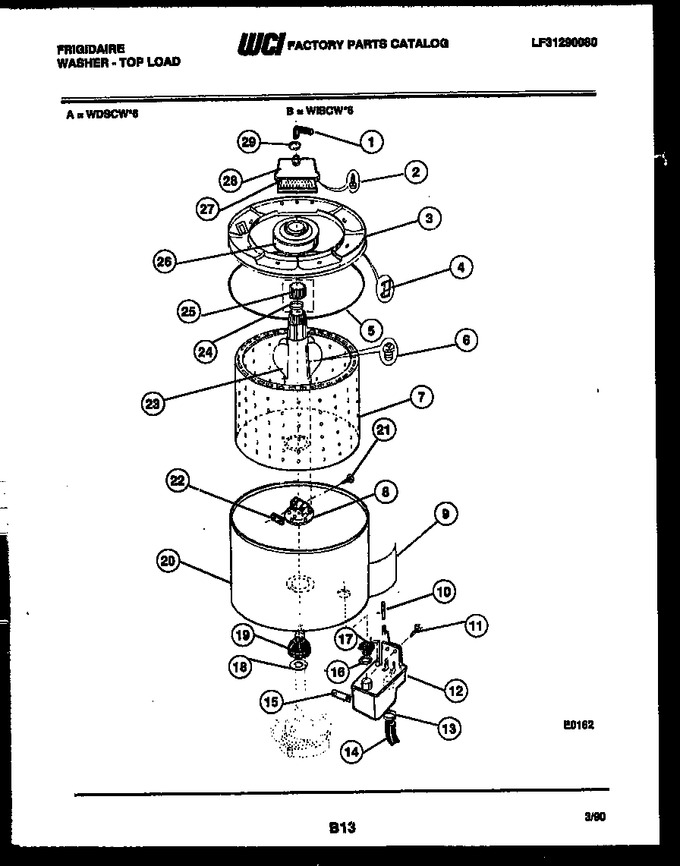

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08002353		Hose-pump To Lint Filter		Appelez-nous	-
2	08002432		Screws		Appelez-nous	-
3	08011314		Sub-top		Appelez-nous	-
4	08002429		Clips (10)		Appelez-nous	-
5	08002430		Seal		Appelez-nous	-
6	08015509		Screws (5)		Appelez-nous	-
7	08015495		Basket-inner Wash		Appelez-nous	-
8	08014908		Support-tub		Appelez-nous	-
9	08011275		Shield		Appelez-nous	-
10	08015491		Hose-pressure Fill		Appelez-nous	-
11	08011280		Screw		Appelez-nous	-
12	5303206795		Trap-button/drain		Appelez-nous	-
13	08014913		Clamp		Appelez-nous	-
14	08002364		Hose-trap To Pump		Appelez-nous	-
15	08011303		Nut		Appelez-nous	-
16	08002367		Clamp		Appelez-nous	-
17	08006674		Grommet		Appelez-nous	-
18	08002401		Washer-thrust		Appelez-nous	-
19	08011284		Bearing-tub Support		Appelez-nous	-
20	08002371		Tub-outer		Appelez-nous	-
21	08014909		Screws (2)		Appelez-nous	-
22	08014907		Plate-lock		Appelez-nous	-
23	08002424		Agitator		Appelez-nous	-
24	08002427		Washer		Appelez-nous	-
25	08006677		Cap Includes Washer		Appelez-nous	-
26	08950170		Dispenser-fabric Softener (optional)		Appelez-nous	-
27	08002435		Filter-lint		Appelez-nous	-
28	08011313		Housing		Appelez-nous	-
29	08015517		Hose-clamp		Appelez-nous	-
19A	08950057		Oversize Bearing Kit		Appelez-nous	-
