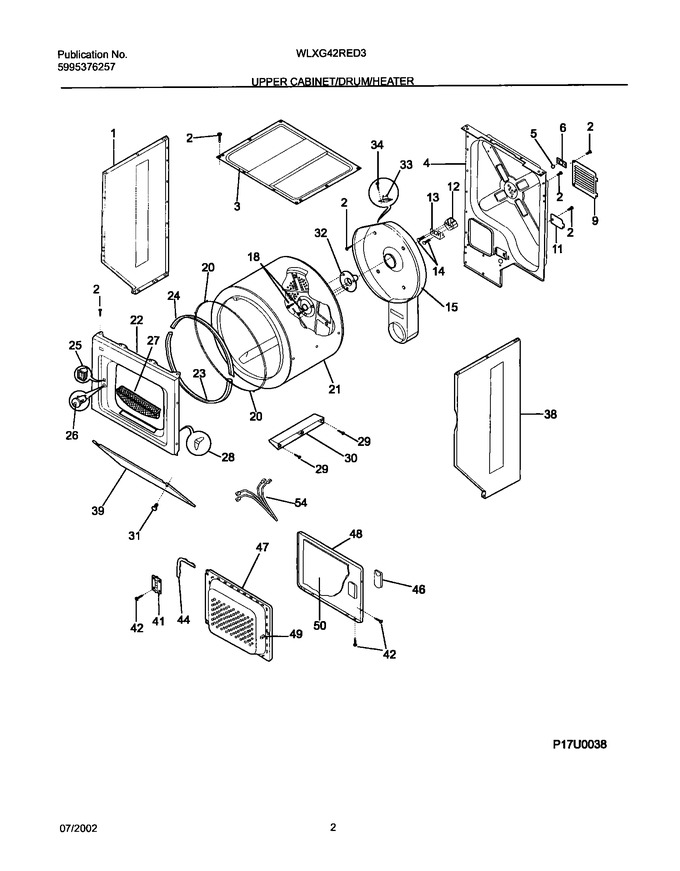

03 - Upper Cab/drum/heater
05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cab/top
11 - Motor/tub
13 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084701 | Panel-left Side-almond |
|
- | |||||
| 2 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 3 | 131883301 | Panel-top Washed |
|
$ 276.98 | |||||
| 4 | 131752302 | Panel-rear |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip-ball |
|
$ 17.01 | |||||
| 9 | 3204249 | Panel-access,dryer |
|
- | |||||
| 11 | 5303207395 | Cover-terminal Block |
|
- | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw |
|
$ 12.76 | |||||
| 15 | 5303207394 | Heater Housing & Duct |
|
$ 385.88 | |||||
| 18 | 131168200 | Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 137513300 | Glide-drum (Replaces: 131963900) |
|
Immediately | $ 36.68 | ||||
| 21 | 134122532 | Asmy-drum Galv |
|
$ 484.07 | |||||
| 22 | 134031700 | Panel-front Almond |
|
- | |||||
| 23 | 5303937183 | Lower Felt (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 24 | 5303937182 | Felt-upper (Replaces: 134036400) |
|
Immediately | $ 26.89 | ||||
| 25 | 131658800 | Catch-door |
|
Immediately | $ 68.38 | ||||
| 27 | 5304516871 | Trap-lint (Replaces: 131359600) |
|
Immediately | $ 35.83 | ||||
| 28 | 5303281074 | Clip-guide |
|
$ 18.27 | |||||
| 29 | 131382300 | Screw (6) |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 131202300 | Screw |
|
Immediately | $ 13.46 | ||||
| 32 | 131777700 | Assembly-shaft (ballhitch) |
|
Immediately | $ 71.87 | ||||
| 33 | 5304406099 | Thermostat-safety |
|
Immediately | $ 120.58 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive |
|
$ 3.36 | |||||
| 38 | 131084801 | Panel-side-almond |
|
- | |||||
| 39 | 131084403 | Panel-access-almond |
|
- | |||||
| 41 | 134222900 | Hinge-door (Replaces: 131627500) |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Door Gasket (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131789401 | Handle-door, Almond |
|
- | |||||
| 47 | 131579104 | Door-inner, Almond |
|
- | |||||
| 48 | 131789304 | Door-outer Almond |
|
- | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Shield-heat (Replaces: 3204286) |
|
$ 60.25 | |||||
| F26 | 5308001614 | Switch-door |
|
- | |||||
| F54 | 131498900 | Harness-door Switch |
|
$ 58.46 | |||||
| NI | 137576600 | Plug-light Hole (Replaces: 131870700) |
|
Immediately | $ 14.18 |
