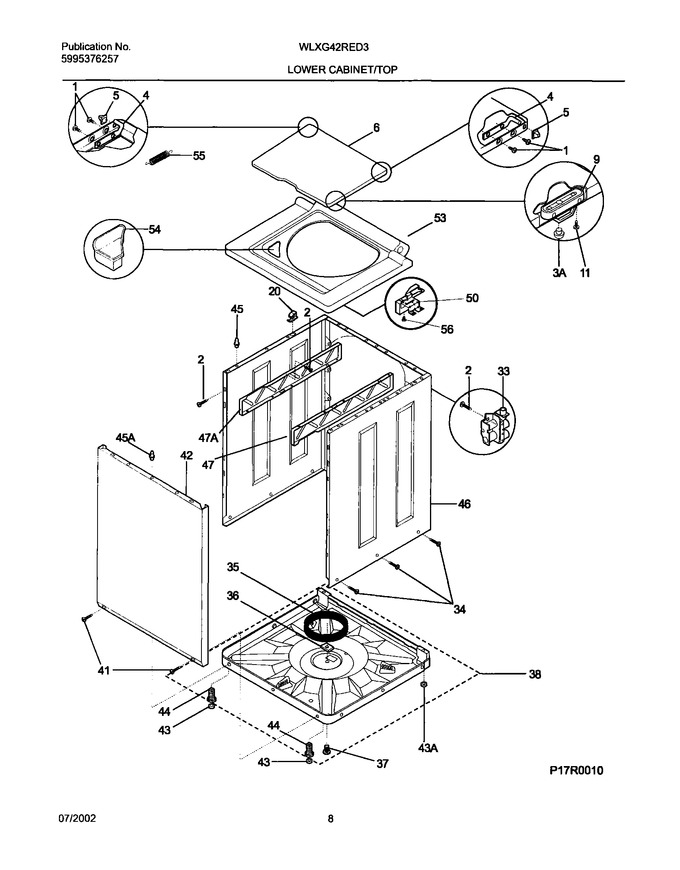

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw-hinge, Pph 45 Deg Hdrpt, 6-32 X .312   (Replaces: 131587500)				$ 10.85
2	131168200		Screw			Immediately	$ 14.18
4	5304489657		Hinge Bar   (Replaces: 3205250)				$ 82.93
5	3204362		Grommet-hinge		Appelez-nous	-
6	5303212873		Lid-almond		Appelez-nous	-
9	131390000		Strike-lid				$ 55.19
11	3204368		Screw-strike, Pfh B, 6-20 X .375				$ 13.01
20	3204374		Pin-slide				$ 78.67
34	131205500		Screw-body, 1/4-14 X .625				$ 13.46
35	5308002385		Ring-snubber				$ 54.86
36	3204380		Block-shipping				$ 12.29
37	131658900		Screw-shipping				$ 6.77
38	5303311213		Base Assembly				$ 374.69
41	131302800		Screw-front Pnl, Comb Th Ab, 10-16 X .50   (Replaces: 131258400)			Immediately	$ 26.58
42	131104305		Panel-front-almond		Appelez-nous	-
43	131422100		Pad-leveling Leg				$ 17.59
44	134548800		Leg-leveling, With Pad   (Replaces: 5303309673)			Immediately	$ 30.20
45	131346400		Locating Pin				$ 12.44
46	134046602		3 Pc Cabinet Asmy-almond		Appelez-nous	-
47	131106701		Bracket-marriage-rh		Appelez-nous	-
53	131452520		Panel-top, Almond		Appelez-nous	-
54	3204394		Dispenser-bleach				$ 59.96
55	134890500		Spring-lid   (Replaces: 5303212876)				$ 19.85
56	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
3A	134075500		Bumper-lid				$ 17.35
43A	131422200		Pad-level Leg			Immediately	$ 56.70
45A	131346401		Pin-locating			Immediately	$ 16.63
47A	131091001		Bracket-marriage-lh		Appelez-nous	-
F33	134190200		Water Valve   (Replaces: 131389300)			Immediately	$ 153.09
F50	ES1800		Lid Lock W/external Sw   (Replaces: 134101800)			Immediately	$ 61.20
NI	131453000		Bushing-drain Hose				$ 10.63
NI	5303212877		Insert-spring Adjustment				$ 18.38
NI	5303309503		Clip-backsheet				$ 7.09
