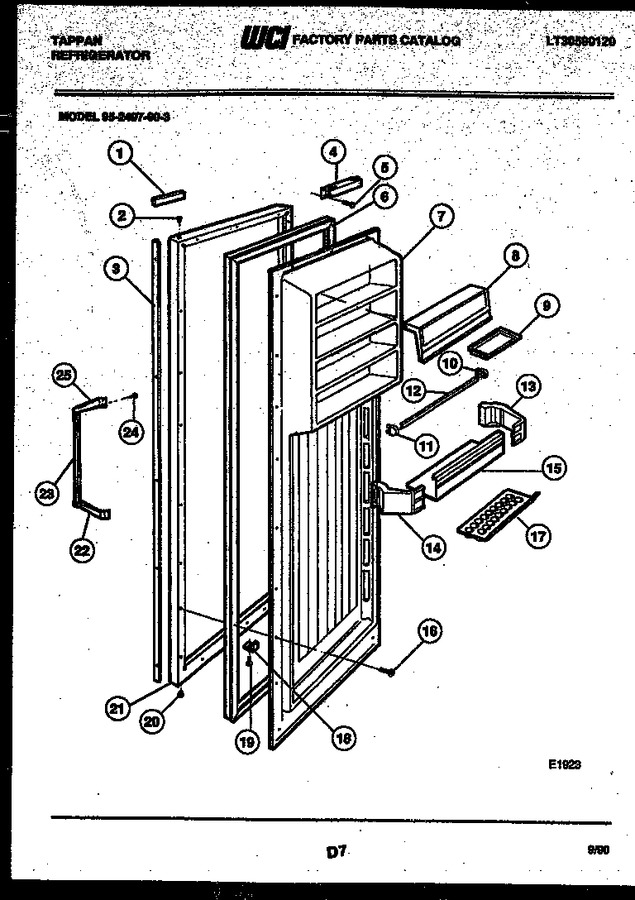

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001312 | Nameplate Assy |
|
- | |||||
| 2 | 5303001022 | Bearing-upper Hinge |
|
- | |||||
| 3 | 3001012 | Trim-refrigerator Door |
|
- | |||||
| 4 | 5303200272 | Closer-door |
|
- | |||||
| 5 | 3001020 | Screw-closer |
|
- | |||||
| 6 | 5303200473 | Gasket-refr Door |
|
- | |||||
| 7 | 5308009949 | Panel-inner Door |
|
- | |||||
| 8 | G173014-07 | Door-compartment (2) |
|
- | |||||
| 9 | 5303001090 | Dish-butter |
|
- | |||||
| 10 | 5303323480 | Support-rack Rh (2) (Replaces: 5303017376) |
|
$ 14.18 | |||||
| 11 | 5303323481 | Support-rack Lh (2) (Replaces: 5303017379) |
|
Immediately | $ 14.18 | ||||
| 12 | 3001005 | Rack-door (2) |
|
- | |||||
| 13 | 5303206696 | Support-shelf Rh (3) |
|
- | |||||
| 14 | 5303206695 | Support-shelf Lh (3) |
|
- | |||||
| 15 | 5303206699 | Shelf-door (3) |
|
- | |||||
| 16 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 17 | 5303001023 | Tray-egg |
|
- | |||||
| 18 | 5308000790 | Bumper-switch |
|
$ 3.86 | |||||
| 19 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 20 | 5308012007 | Bearing-lower Hinge |
|
- | |||||
| 21 | G183031-08 | Refr Door-avocado |
|
- | |||||
| 22 | 5308001015 | Handle End-bottom |
|
- | |||||
| 23 | 3001013 | Handle-refr Door |
|
- | |||||
| 24 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 25 | 5303001014 | Handle - End Top |
|
- | |||||
| *39553 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 21A | 5315230801 | Door Plug-bottom (non-illustrated) |
|
- |
