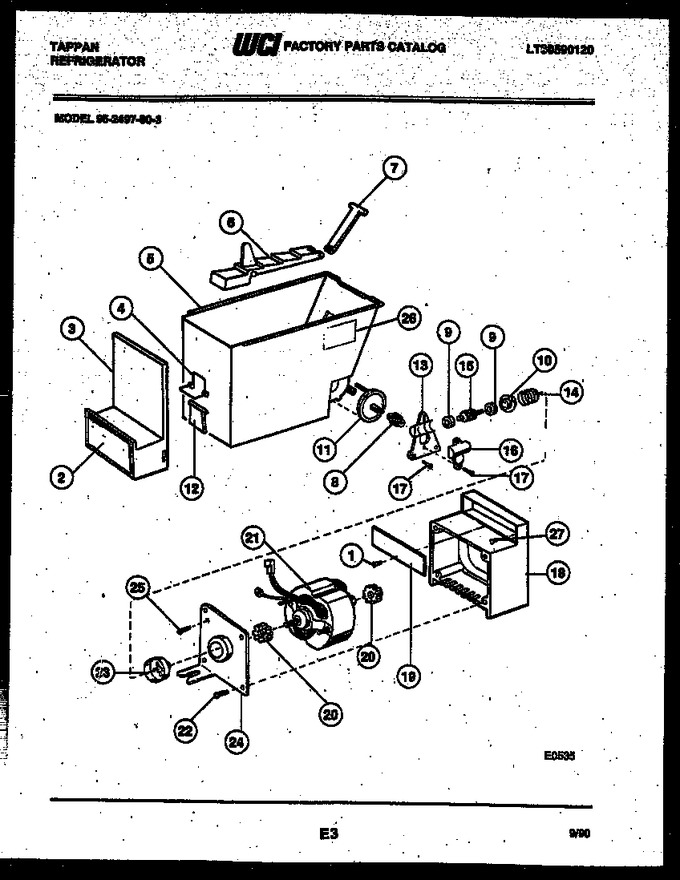

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
2	3001171		Label-ice Container		Appelez-nous	-
3	3001160		Front-ice Container		Appelez-nous	-
4	5300184853		Spring-ice Container Door		Appelez-nous	-
5	5317721303		Ice Container		Appelez-nous	-
6	5303001159		Ram-ice Dispenser		Appelez-nous	-
7	5317769703		Deflector-ice Disp		Appelez-nous	-
8	5301123566		Worm Gear-ice Ram		Appelez-nous	-
9	5301123508		Bearing-rear (2)		Appelez-nous	-
10	5308017407		Coupling-ice Disp		Appelez-nous	-
11	5301123568		Disc-ice Ram		Appelez-nous	-
12	5317440701		Door-ice Container		Appelez-nous	-
13	5300174408		Housing-ice Ram		Appelez-nous	-
14	5301123767		Spring-ice Disp Drive		Appelez-nous	-
15	5301124161		Worm-ice Ram		Appelez-nous	-
16	5301123570		Cover-housing		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
18	5308010343		Housing-ice Dispenser Motor		Appelez-nous	-
19	5308010346		Cover-ice Dispenser Motor		Appelez-nous	-
20	5301123769		Mount-ice Dispenser Motor (2)		Appelez-nous	-
21	5308017049		Motor-ice Dispenser Ram		Appelez-nous	-
22	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
23	5301123771		Coupling-ice Dispenser Motor		Appelez-nous	-
24	5303001106		Bracket-motor		Appelez-nous	-
25	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
26	5303016895		Label-im Dispenser		Appelez-nous	-
27	5308010253		Screw (2)		Appelez-nous	-
*39574	08010378		Bracket-motor Mtg		Appelez-nous	-
