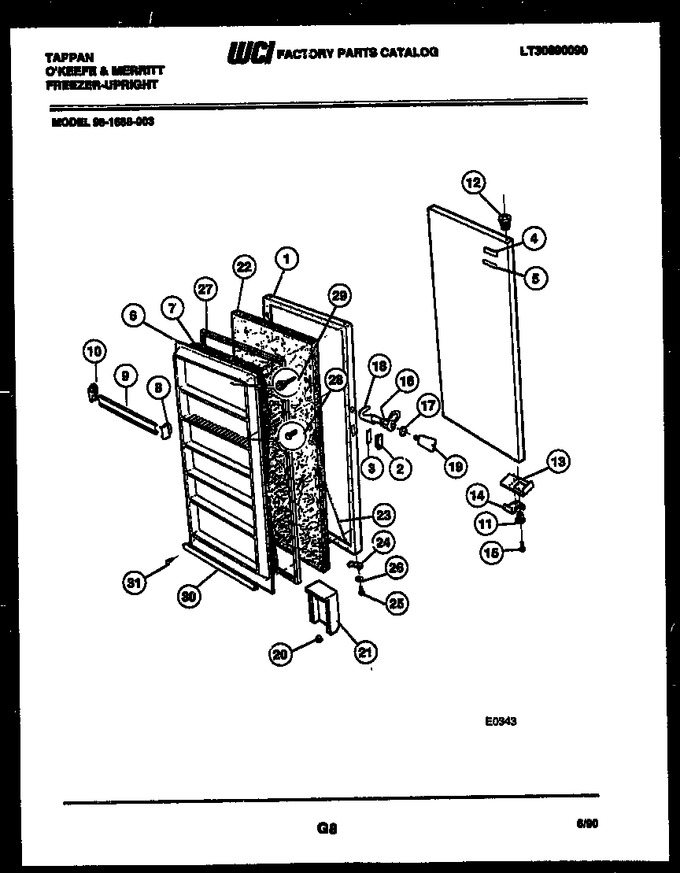

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F128673-S		Panel-door		Appelez-nous	-
2	F129863		Handle Recessed		Appelez-nous	-
3	F112639		Gasket, Handle		Appelez-nous	-
4	3204179		Nameplate		Appelez-nous	-
5	3204180		Insert Nameplate		Appelez-nous	-
6	F124565-93		Panel-insert Panel		Appelez-nous	-
7	F116171-50		Insulation		Appelez-nous	-
8	3204182		Shelf-front Narrow		Appelez-nous	-
9	5309948967		End Cap Rh		Appelez-nous	-
10	5309948968		End Cap Lh		Appelez-nous	-
11	5303210403		Bearing, Bottom		Appelez-nous	-
12	F84893		Bearing, Top		Appelez-nous	-
13	F91170		Reinforcement, Door Stop		Appelez-nous	-
14	F124623		Stop-door		Appelez-nous	-
15	F121387		Screw-door Stop		Appelez-nous	-
16	5300190358		Lock-complete		Appelez-nous	-
17	F114366		Washer-lock		Appelez-nous	-
18	F124455		Lock Hook		Appelez-nous	-
19	08037402		Key Lock		Appelez-nous	-
20	F117926		Valve Breather		Appelez-nous	-
21	F128421		Duct		Appelez-nous	-
22	F116277		Insulation Door		Appelez-nous	-
23	F129667		Wire		Appelez-nous	-
24	F57880		Bracket		Appelez-nous	-
25	F57906		Screw Bracket		Appelez-nous	-
26	F119827		Washer-bracket		Appelez-nous	-
27	F129795		Gasket-door		Appelez-nous	-
28	3161215		Screw-door Panel		Appelez-nous	-
29	08009384		Screw-panel		Appelez-nous	-
30	F99439		Gasket		Appelez-nous	-
31	F300792		Rivet-gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
